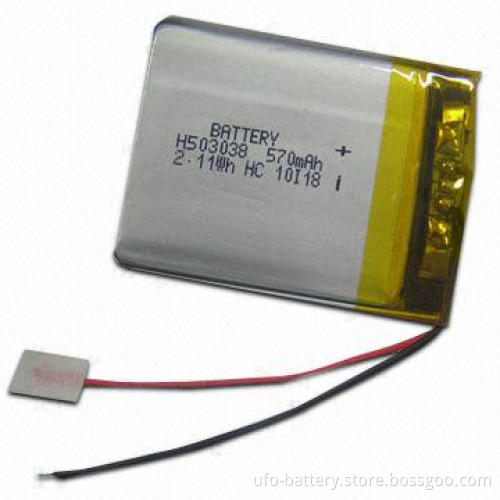

Lithium Polymer Batteries, 3.7V and 570mAh Capacity for PDA/MP3
  • Lithium Polymer Batteries, 3.7V and 570mAh Capacity for PDA/MP3
Lithium Polymer Batteries, 3.7V and 570mAh Capacity for PDA/MP3

Lithium Polymer Batteries, 3.7V and 570mAh Capacity for PDA/MP3

Get Latest Price
Payment Type:
30% Deposit, the Balance is Paid off before Shipme
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: 30% Deposit, the Balance is Paid off before Shipme
Product Description
Product Description
  • Specifications:
    • Typical capacity: 570mAh
    • Nominal voltage: 3.7V
    • End voltage: 2.75V
    • Charging current: 0.2CA = 114mA
    • Charging current: 1.0CA = 570mA (maximum)
    • Charging voltage: 4.20 ±0.025V
    • Charging time: 6 to 7.0 hours (standard)
    • Charging time: 2 to 3.0 hours (maximum)
    • Continuous discharging current: 570mAh (maximum)
    • Discharging current: 1,140mAh (maximum)
    • Internal resistance: <170mΩ (25°)
    • Maximum dimension (T x W x L): 6.5 x 19.0 x 52.50mm
    • Connector: ALEX 2510-3
    • Weight: 11g
  • Features:
    • High-capacity density
    • High-safety, no burning, no explosion
    • Can use any object shape
    • Clean and green energy
    • With CE, RoHS and UL marks
  • Applications:
    • Widely used in portable devices, audio and video devices, such as PDA, GPS, MP3/MP4 Player, e-book
  • Typical capacity: 570mAh
  • Nominal voltage: 3.7V
  • End voltage: 2.75V
  • Charging current: 0.2CA = 114mA
  • Charging current: 1.0CA = 570mA (maximum)
  • Charging voltage: 4.20 ±0.025V
  • Charging time: 6 to 7.0 hours (standard)
  • Charging time: 2 to 3.0 hours (maximum)
  • Continuous discharging current: 570mAh (maximum)
  • Discharging current: 1,140mAh (maximum)
  • Internal resistance: <170mΩ (25°)
  • Maximum dimension (T x W x L): 6.5 x 19.0 x 52.50mm
  • Connector: ALEX 2510-3
  • Weight: 11g
  • High-capacity density
  • High-safety, no burning, no explosion
  • Can use any object shape
  • Clean and green energy
  • With CE, RoHS and UL marks
  • Widely used in portable devices, audio and video devices, such as PDA, GPS, MP3/MP4 Player, e-book
