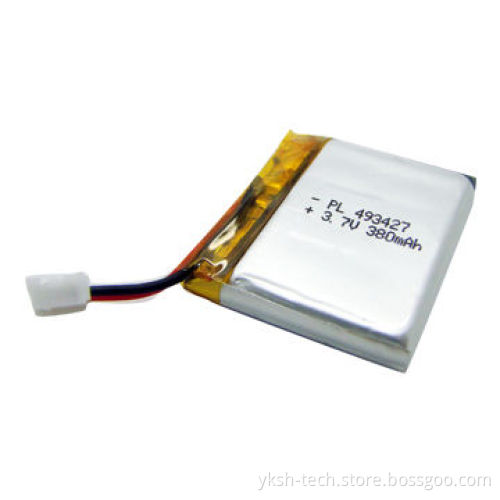

Soft Pack Lithium Polymer Battery for GPS, Instruments with 3.7V Voltage, 380mAh Capacity

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Charge voltage: 4.2V
Overcharge protection voltage: 4.3V
Nominal voltage: 3.7V
Minimal capacity (0.5°C): 380mAh at 0.5°C discharge
Nominal capacity: 380mAh at 0.5°C discharge
Charge current: standard charge at 0.5°C and rapid charge at 1.0°C
Standard charging method: 0.5°C (constant current) charge to 4.2V, then CV (constant voltage 4.2V) charge till charge current decline to ≤0.05°C
Charging time: standard charge needs 3.0 hours and rapid charge needs 2 hours
Charging current: 1°C (maximum)
Discharge current: 1°C (maximum)
Discharge cut-off voltage: 3.0V
Operating temperatures:
- Charging: 0 to 45℃
- Discharging: -10 to 45℃
- Storage: -10 to +45℃
Cell weight: 9.0g
Cell dimensions:
- Length: 27mm (not including tabs)
- Width: 34mm
- Thickness: 4.9mm
Size is very flexible, so we can produce the battery size as your requests
