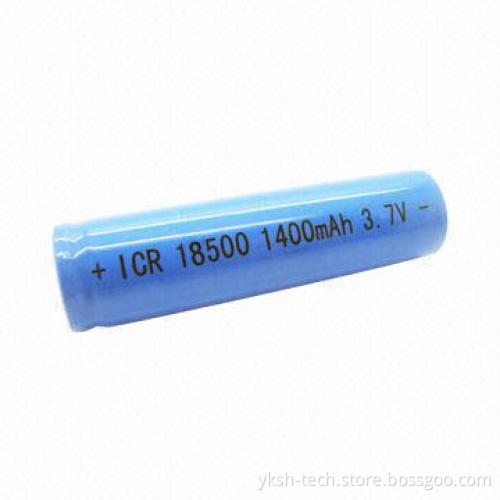

ICR18500 Cylindrical Li-ion Rechargeable Battery, 3.7V, 1,400mAh, Used for Laptops and Computers
  • ICR18500 Cylindrical Li-ion Rechargeable Battery, 3.7V, 1,400mAh, Used for Laptops and Computers
ICR18500 Cylindrical Li-ion Rechargeable Battery, 3.7V, 1,400mAh, Used for Laptops and Computers

ICR18500 Cylindrical Li-ion Rechargeable Battery, 3.7V, 1,400mAh, Used for Laptops and Computers

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Rated voltage: 3.70V
    • Rated capacity (0.2C5A): 1,400mAh
    • Charge voltage: 4.2 ±0.049V
    • Minimum cut-off discharge voltage: 2.75V
    • Maximum cut-off discharge voltage: 4.2V
    • Maximum continuous charge current: 1,400mAh
    • Maximum continuous discharge current: 1,400mAh
    • Battery diameter (maximum): 18 ±0.2mm
    • Battery height (maximum): 50 ±0.2mm
    • Battery weight (approximately): 33g
    • Interior resistance (20 ±5°C): d80m©
    • (CC/CV) charge method and standard (20°C): quick mode,charge at 1,400mA to 4.2V, CC at 4.2V to current <20mA
    • (CC/CV) charge method and standard (20°C): standard mode,charge at 280mA to 4.2V, CC at 4.2V to current <20mA
  • Application environment:
  • Charge: 0 to 45°C
  • Discharge: -20 to 60°C
  • Storage: -20 to 45°C, 65 ±20% RH, air pressure 86 to106kPa
  • Standard test environment:
  • Temperature: 20 ±5°C, <85% RH
  • Rated voltage: 3.70V
  • Rated capacity (0.2C5A): 1,400mAh
  • Charge voltage: 4.2 ±0.049V
  • Minimum cut-off discharge voltage: 2.75V
  • Maximum cut-off discharge voltage: 4.2V
  • Maximum continuous charge current: 1,400mAh
  • Maximum continuous discharge current: 1,400mAh
  • Battery diameter (maximum): 18 ±0.2mm
  • Battery height (maximum): 50 ±0.2mm
  • Battery weight (approximately): 33g
  • Interior resistance (20 ±5°C): d80m©
  • (CC/CV) charge method and standard (20°C): quick mode,charge at 1,400mA to 4.2V, CC at 4.2V to current <20mA
  • (CC/CV) charge method and standard (20°C): standard mode,charge at 280mA to 4.2V, CC at 4.2V to current <20mA
