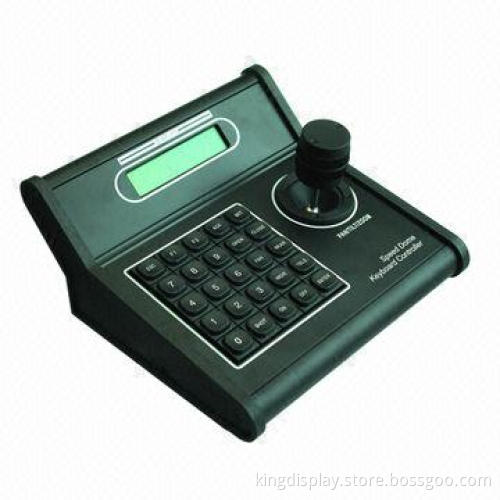

3D Keyboard Controller

Get Latest Price

Payment Type:: T/T, L/C, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal, Western Union

Product Description

The keyboard controller is professionally equipped together with terminal receivers such as the intelligent speed dome and the decoder and others

Taking the EIA/RS-485 electrical interface between the keyboard and the receiver, one keyboard can control as much as 32 speed dome and decoders and the maximum communication distance between the keyboard and the receiver is up to 1.2km without bus-mastering

The keyboard controller makes it more convenient to control the speed dome camera and the terminal decoder, hence to control the camera constant speed pan tilt, lens, light, rain brush and so on

Model: KD-AT505

Functions/specifications:

Dome camera or decoder address setting range: 0 - 9999
Users can set password, keyboard locking time, communication rate and protocol by using the operation menu
With functions to control the dome camera: such as camera background light compensation on/off
Operate the dome camera at different speed setting, speed switching smooth and stable
Control the pan tilt auto line scan, speed and direction can be set as well
Set or call the set points and cruise tracks of the dome camera
Altogether 999 preset points and 1 - 6 cruise tracks can be set
Each track involves 16 preset position and the dwelling time and call speed upon each point can be set as well
Manually or automatically control the dome camera, and change the internal function settings of particular camera by call the menu of the camera
Manually control the focus, zoom and iris of the camera
Provide on line control help
Intelligent design, easy operation, all setting can be done with the operation menu
Fine tune
Joystick: 3D (pan/tilt, zoom)
Communication: RS-485/RS-232 (PC)
Baud rate: 2,400 - 19,200bps
Communication distance: 1,200m
Connection: RJ45 cable
Power: DC 12V 900mA/DC9V 1,000mA
Consumption: 5W
Weight: 1.2kg
Dimensions: 95 (H) x 205 (L) x 205mm (W)

Dome camera or decoder address setting range: 0 - 9999

Users can set password, keyboard locking time, communication rate and protocol by using the operation menu

With functions to control the dome camera: such as camera background light compensation on/off

Operate the dome camera at different speed setting, speed switching smooth and stable

Control the pan tilt auto line scan, speed and direction can be set as well

Set or call the set points and cruise tracks of the dome camera

Altogether 999 preset points and 1 - 6 cruise tracks can be set

Each track involves 16 preset position and the dwelling time and call speed upon each point can be set as well

Manually or automatically control the dome camera, and change the internal function settings of particular camera by call the menu of the camera

Manually control the focus, zoom and iris of the camera

Provide on line control help

Intelligent design, easy operation, all setting can be done with the operation menu

Fine tune

Joystick: 3D (pan/tilt, zoom)

Communication: RS-485/RS-232 (PC)

Baud rate: 2,400 - 19,200bps

Communication distance: 1,200m

Connection: RJ45 cable

Power: DC 12V 900mA/DC9V 1,000mA

Consumption: 5W

Weight: 1.2kg

Dimensions: 95 (H) x 205 (L) x 205mm (W)
