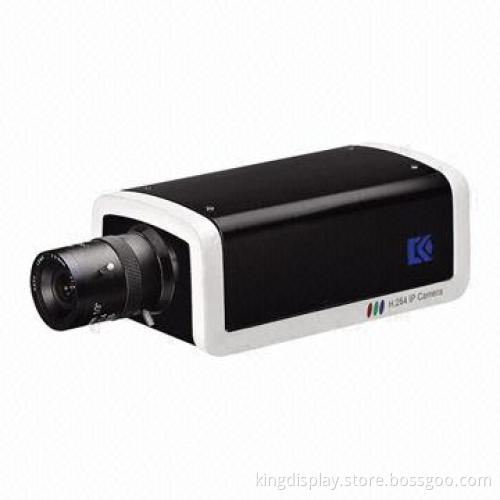

IP Network Security Box Camera with POE, H.2645, 1.3MP CMOS HD, 720P

Get Latest Price

Payment Type:: PayPal, T/T, L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, T/T, L/C or Western Union

Product Description

1/3-inch 1.3 MP Aptina CMOS image sensor

High-performance TI DaVinci series DSP

H.264/MJEPG video compression and JPEG image capture

Support dual-stream encoding

25/30fps at 1.3MP (1280 x 960)/720P (1280 x 720)

Supports ICR true day/night

Supports C/CS auto iris lens

Supports alarm I/O, RS485 interface

Maximum 32GB hot-swap SD card for local storage

Model: KDT-HA15XC72

General:

Processor TI DaVinci Series DSP
Operating system: Embedded Linux
Resource simultaneous remote monitoring, local recording and remote control
User interface WEB, CMS, NVR

Camera:

Image sensor: 1/3-inch, 1.3MP Aptina CMOS image sensor
Effective pixels: 1280 x 960
Electronic shutter: auto/manual, 1/3-1/10000s (PAL), 1/4-1/10000s (NTSC)
Minimum illumination: 0. 1 lux/F1.2 (color), 0.005 lux/F1.2 (B/W)
Signal noise ratio: >50dB
Backlight compensation: BLC/HLC/DWDR
Gain control: auto/manual
White balance: auto/manual
Day/night: ICR
Lens mount: C/CS
Auto iris: supported
Noise reduction: 3D

Video:

Video compression: H.264/JPEG
Image resolution: 1.3M (1280 x 960)/720P (1280 x 720)/D1 (704 x 576/704 x 480)
Encoding speed main stream: 1.3M/720P/D1 (1-25/30fps)
Extra stream: D1/CIF 1-25/30fps
Bit rate: 32K-8192Mbps
Snapshot: fastest 1fps JPEG capture
Video format: PAL/NTSC
Analogue video output: 1CH BNC (1.0Vp-p, 75)

Audio:

Audio compression: G.711a/G.711u/PCM
Bit rate: 128/64/10.2kbps
Input 1 channel: 3.5mm jack line in
Output 1 channel: 3.5mm jack speak out

Processor TI DaVinci Series DSP

Operating system: Embedded Linux

Resource simultaneous remote monitoring, local recording and remote control

User interface WEB, CMS, NVR

Image sensor: 1/3-inch, 1.3MP Aptina CMOS image sensor

Effective pixels: 1280 x 960

Electronic shutter: auto/manual, 1/3-1/10000s (PAL), 1/4-1/10000s (NTSC)

Minimum illumination: 0. 1 lux/F1.2 (color), 0.005 lux/F1.2 (B/W)

Signal noise ratio: >50dB

Backlight compensation: BLC/HLC/DWDR

Gain control: auto/manual

White balance: auto/manual

Day/night: ICR

Lens mount: C/CS

Auto iris: supported

Noise reduction: 3D

Video compression: H.264/JPEG

Image resolution: 1.3M (1280 x 960)/720P (1280 x 720)/D1 (704 x 576/704 x 480)

Encoding speed main stream: 1.3M/720P/D1 (1-25/30fps)

Extra stream: D1/CIF 1-25/30fps

Bit rate: 32K-8192Mbps

Snapshot: fastest 1fps JPEG capture

Video format: PAL/NTSC

Analogue video output: 1CH BNC (1.0Vp-p, 75)

Audio compression: G.711a/G.711u/PCM

Bit rate: 128/64/10.2kbps

Input 1 channel: 3.5mm jack line in

Output 1 channel: 3.5mm jack speak out
