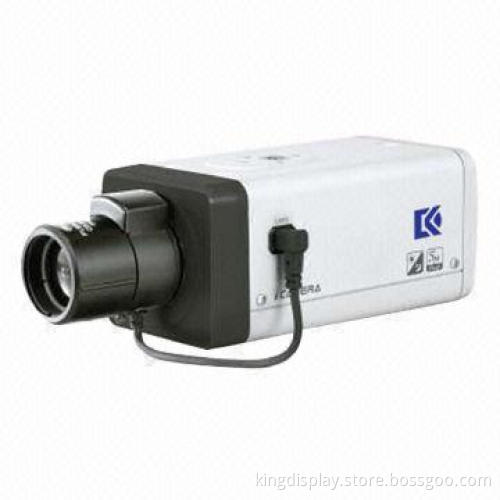

Dahua 2MP CMOS Full HD Network Camera
  • Dahua 2MP CMOS Full HD Network Camera
Dahua 2MP CMOS Full HD Network Camera

Dahua 2MP CMOS Full HD Network Camera

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Processor: TI DaVinci series DSP
  • Operating system: embedded Linux
  • Resource: simultaneous remote monitoring, local recording and remote control
  • User interface: web, CMS (DSS/ PSS), DMSS, NVR
  • Camera:
    • Image sensor: 1/3” 2.0-megapixel Sony progressive scan Exmor CMOS
    • Effective pixels: 1,920 (H) x 1,080 (V)
    • Electronic shutter: auto/manual, 1/3-1/10,000s (PAL), 1/4-1/10,000s (NTSC)
    • Minimum illumination: 0.1 lux/F1.2 (colored), 0.01 lux/F1.2 (B/W)
    • Signal noise ratio: >50dB
    • Gain control: auto/manual
    • White balance: auto/manual
    • Day/night: ICR
    • Lens mount: C/CS
    • Auto-iris: supported
  • Video:
    • Video compression: H.264/JPEG
    • Image resolution: 1,080P (1,920 x 1,080)/ 720P (1,280×720)/D1 (704×576/704×480)
    • Encoding speed:
      • PAL: 1,080P/720P/ D1 (1-25fps)
      • NTSC: 1,080P/720P/D1 (1-30fps)
    • Bit rate: 160Kbps-8Mbps
    • Snapshot: fastest 1fps JPEG capturing
    • Video formats: PAL/NTSC
    • Analogue video output: 1 channel BNC (1.0Vp-p, 75Ω)
  • Audio:
    • Audio compression: G.711a/G.711u/PCM
    • Bit rate: 128kbps/64kbps/10.2kbps
    • Input: 1 channel 3.5mm jack line-in
    • Output: 1 channel 3.5mm jack speak-out
  • Network:
    • Ethernet: RJ-45 (10/100Base-T)
    • Network functions: HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server
  • Remote operation: monitor, PTZ control, playback, system setting, file download, log information, maintenance and upgrade
  • Auxiliary interface:
    • SD card: max of 32GB, local storage
    • RS232: PC communication
    • RS485: PTZ control
    • Alarm: 1 Input/1 output
  • Environmental:
    • Power supply: DC 12V/AC 24V
    • PoE: IEEE802.3af
    • Power consumption: <6W
    • Operating environment: -10-60°C, 10-90％
    • Dimensions: 70 x 63.2 x 149.5mm
    • Weight: 650g
  • Image sensor: 1/3” 2.0-megapixel Sony progressive scan Exmor CMOS
  • Effective pixels: 1,920 (H) x 1,080 (V)
  • Electronic shutter: auto/manual, 1/3-1/10,000s (PAL), 1/4-1/10,000s (NTSC)
  • Minimum illumination: 0.1 lux/F1.2 (colored), 0.01 lux/F1.2 (B/W)
  • Signal noise ratio: >50dB
  • Gain control: auto/manual
  • White balance: auto/manual
  • Day/night: ICR
  • Lens mount: C/CS
  • Auto-iris: supported
  • Video compression: H.264/JPEG
  • Image resolution: 1,080P (1,920 x 1,080)/ 720P (1,280×720)/D1 (704×576/704×480)
  • Encoding speed:
    • PAL: 1,080P/720P/ D1 (1-25fps)
    • NTSC: 1,080P/720P/D1 (1-30fps)
  • Bit rate: 160Kbps-8Mbps
  • Snapshot: fastest 1fps JPEG capturing
  • Video formats: PAL/NTSC
  • Analogue video output: 1 channel BNC (1.0Vp-p, 75Ω)
  • PAL: 1,080P/720P/ D1 (1-25fps)
  • NTSC: 1,080P/720P/D1 (1-30fps)
  • Audio compression: G.711a/G.711u/PCM
  • Bit rate: 128kbps/64kbps/10.2kbps
  • Input: 1 channel 3.5mm jack line-in
  • Output: 1 channel 3.5mm jack speak-out
  • Ethernet: RJ-45 (10/100Base-T)
  • Network functions: HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server
  • SD card: max of 32GB, local storage
  • RS232: PC communication
  • RS485: PTZ control
  • Alarm: 1 Input/1 output
  • Power supply: DC 12V/AC 24V
  • PoE: IEEE802.3af
  • Power consumption: <6W
  • Operating environment: -10-60°C, 10-90％
  • Dimensions: 70 x 63.2 x 149.5mm
  • Weight: 650g
