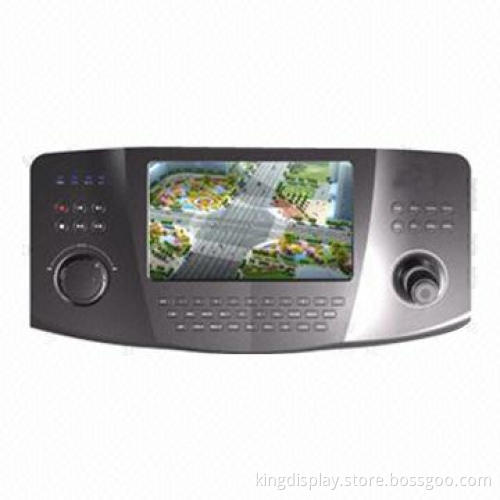

HD Network Control Keyboard

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal, Western Union

Product Description

Keyboard to control: DVR, high-speed dome, network high-speed dome, central management platform, network video server

RS232, RS485 and network connections

Three dimensional joystick control of PTZ functions

Preset position, auto-scan, auto-pan, auto-tour and pattern control

Auxiliary functions

On-screen menu and user operation procedure tips

Model: KD-DN507/KD-DT507

General:

DVR/network dome:

Environmental:

Keyboard: keypanel/electromechanical

Joystick: 3-axis, vector-solving, with twisting, return to center head

Keyboard connector: RJ-45, RS232, RS485/RS232, RS485

Keyboard communication: direct mode, network mode/direct mode

Direct mode interface: RS232/RS485

DVR protocol: DH1/DH2

Dome protocol: DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P1

Network mode interface: RJ45

IP address/port/protocol: N/A

Display: LCD, 84 x 31mm

Power supply: power adapter, input 100 - 240V 50Hz/60Hz, output DC 12V/1,000mA

Power consumption: 5W

Working temperature: -10 to 55°C

Working humidity: 10 - 90%

Atmosphere pressure: 86 - 106kPa

Dimensions: 320 x 190 x 50mm (W x D x H) (height: 100mm including joystick)

Weight: 2.5kg
