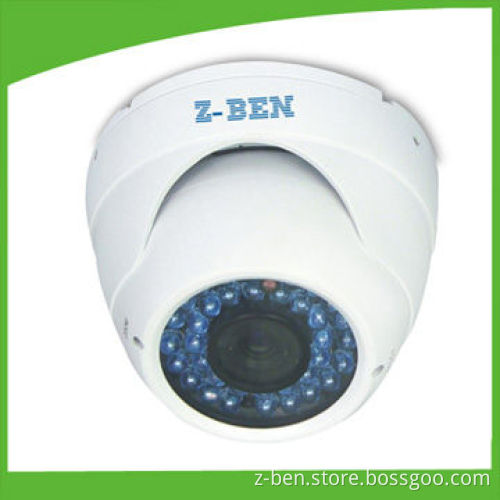

Varifocal Dome Cameras with 1/3-inch Sony Effio Pick-up Device and 4 to 9mm Manual Varifocal Lens

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Image sensor: 1/3-inch Sony Effio

Horizontal resolution: 650TVL

Pixels:

LED: 36pcs

IR series distance: 50m

Lens: 4 to 9mm manual varifocal lens

Synchronization system: internal synchronization

Usable illumination: 0 lux (infrared lamps turn on)

S/N ratio: e48dB (AGC off)

Gamma characteristic: 0.45

Video output: 1.0Vp-p, 75Ω

Scanning system:

Electronic shutter time:

Operation temperatures: -10 to 50°C, 95% RH

Storage temperatures: -20 to 60°C, 95% RH

White balance: auto

Power supply: 12V DC ± 10%

Dimensions: 120 x 80mm

PAL: 752 x 582 pixels

NTSC: 768 x 494 pixels

TV system: PAL and NTSC

PAL: 625TVL, 50fps

NTSC: 525TVL, 60fps

PAL: 1/50 to 100,000 second

NTSC: 1/60 to 1/100,000 second
