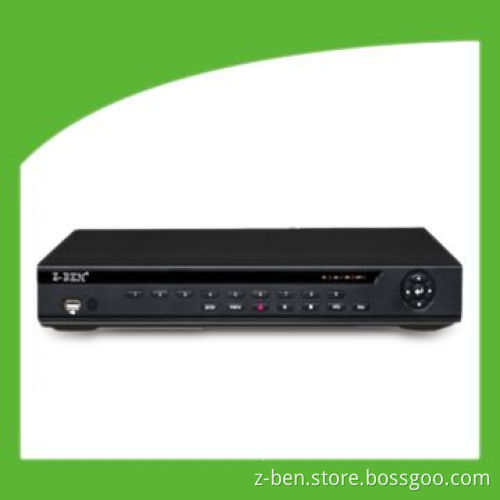

Standalone DVR with H.264 Main Profile Video Compression and 16-channel Video Input

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C at Sight or Western Union

Product Description

16-channel video input

Video compression format: H.264

Operating system: embedded Linux

Operation interface: GUI, on-screen menu tips

Video standard:

Video input: 16 channels

Video output: 1 channels BNC output, 1 channel high definitionVGA output optional

Audio input: 4 channels

Audio output: 1 channel RCA, 200 to 300mV, 5k©

Alarm input: 4 channels

Alarm output: 1 channel

PTZ control: 1 RS485

Power supply: 12V, 4A

Power consumption: <10W

Working temperature: -10 to +55°C

Working humidity: 10 to 90% RH

Dimensions: 370 x 250 x 68.5mm

Weight: 2.75kg

Features:

Alarm, VGA and audio outputs, network connectivity includingCIF
Compact and elegant
Supports multiple OSD languages with the ability to addadditional translations as required
Remote (internet) surveillance available via web browser ormobile phone
Customized exterior is welcome, enabling to sell as ownbrand
Meets all international zonal requirements for video recordingdata retention, can be set as required for region or zone
Supports mouse, remoter control and panel operating
Supports backup with USB flash disk, movable hard disk writeand network
Supports multiplex operation: live, record, playback, backup,network transmission, mobile phone surveillance
Multiple control methods: front panel, IR remote controller andUSB mouse
Supports USB2.0 port for mouse, backup, DVD-RW, movable harddisk, upgrade and more
Easy backup methods: USB devices, remote network and clientsoftware backup
Alarm triggering screen tips, buzzer, PTZ preset, email,snapshot and FTP upload
