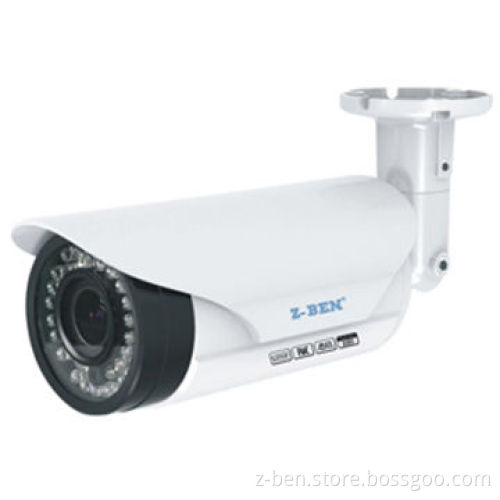

HD SDI Camera with 2.8 to 12mm Varifocal Lens, 12V DC Power Supply

HD SDI Camera with 2.8 to 12mm Varifocal Lens, 12V DC Power Supply

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Megapixel 2.8mm-12mm varifocal lens

Infrared lamp diameter 5 IR LED 36pcs

IR distance: 35m

Image sensors: 1/2.7" Panasonic CMOS (MN34041PL) and 1/2.8" Sony CMOS (IMX138)

Active pixel: 194(H)*1092(V) and 1280(H)*768(V)

Resolution:

Digital: 1080(30p), 720(60p) and 720(30p)

Minimum illumination:

Color: 0 lux
BW: 0.5 lux
Color DSS: 0.017 lux
BW DSS: 0.0008 lux

Scanning system: progressive

S/N ratio: more than 50dB (AGC off)

WDR: HD SDI WDR

AEC/DWDR: CVBS DWDR

Lens: DC/manual

Brightness: 0-20

AGC: 0-20 steps

Sens up: 1-8x

Shutter speed: auto/manual (1/50-1/60,000sec)

Digital slow shutter: off/on (X4)

Defgo: off/on

Shading: off/on

BLC: off/BLC

HLC: off/HLC

Day and night: auto*color/B and W

White balance: auto/auto text/pushing/manual

Focus ADJ: off/on

Monitor: 0/1/2/3

DNR: off/low/middle/high

Mirror: off/on

H-V-REV: off/on

Sharpness: 0-10 steps

Digital zoom: x1-10

Motion: off/on

Privacy mask: 32 masks

Video output: HD-SDI

Analog: NTSC/PAL CVBS

SMA connector, CVBS: BNC connector

HD SDI distance: 5C 2V (75Ω) 100-140m, SDI (75Ω) 200m

Digital: 1080(30p), 720(60p) and 720(30p)

Color: 0 lux

BW: 0.5 lux

Color DSS: 0.017 lux

BW DSS: 0.0008 lux
