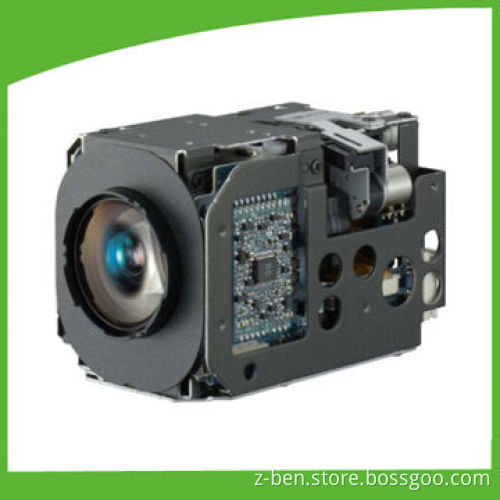

CCTV Box Zoom Camera with 12V DC, 750mA Power Supply and 535TVL Horizontal Resolution

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Image sensor: 1/4-inch Sony color CCD 535TVL Pinter linetran-star
Horizontal resolution: 535TVL
Signal system: PAL/NTSC
Effective pixels:
- PAL (H x V): 752 x 582 pixels
- NTSC (H x H): 768 x 494 pixels
Shutter speed: 1/50 (1/60) to 1/100,000 seconds
S/N ratio: more than 52dB
OSD: English
User-friendly OSD menu with three languages controlled byRs485
Digital zoom can be used in speed dome which is better thananalog zoom
95 percent faster for focus speed than the secondgeneration
Adjust different languages according to customers'requirement
Focusing system: digital focus
Control interface: line control
White balance: automatic/user's manual/lock/automatictracking
Usable illumination (minimum):
- IR off: 0.05 Lux
- IR on: 0 Lux
Operating temperature: -10 to +50
Operating humidity: 95% RH (maximum)
Storage temperature: -20 to +60
Storage humidity: 95% RH (maximum)
Power supply: 12V DC, 750mA
Power: 6W

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.
