Data and Charger LED Light Cable for iPhone 4, Plug-and-play Function

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, DP

Product Description

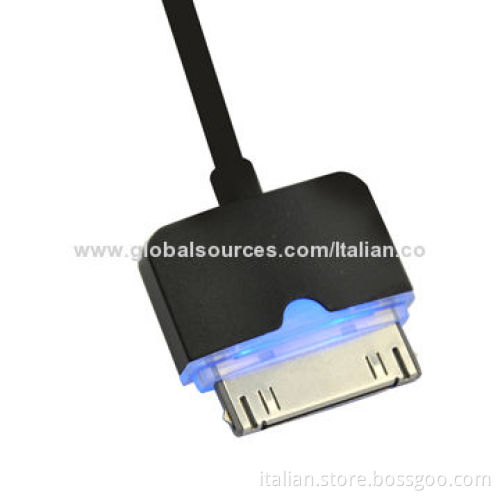

USB 30-pin LED data sync cable for iPhone 4

High-speed

Hot plug-and-play function

Connector types: USB type A male, micro B male

The light will be red when it charging, and will turn blue once full charged

USB2.0 A type M/micro B M

Optional gold and nickel plating

Conductor: pure copper

Edition: USB1.0, 2.0, 3.0 (optional)

Gauge: 30, 28, 26AWG (optional)

Length: 0.5, 1.5, 2, 5, 10, 15m, and according to the clients' requirement

Jacket colors: black, blue, gray, transparent, and according to the clients‘ requirement

100% open and short test

Hi-pot: 300V DC, 10ms

Insulation resistance: 10M Ohms/300V (minimum)

Contact resistance: 0.01 Ohms (maximum)

Shield up to 65% braid

Working temperature: -25 - 85°C

Over mold: PVC 70Pa UL94V-0 black

Pre-mold: PE low-density

Contact: copper alloy

Insertion force: 35N (maximum)

Withdraw force: 10N (minimum)
