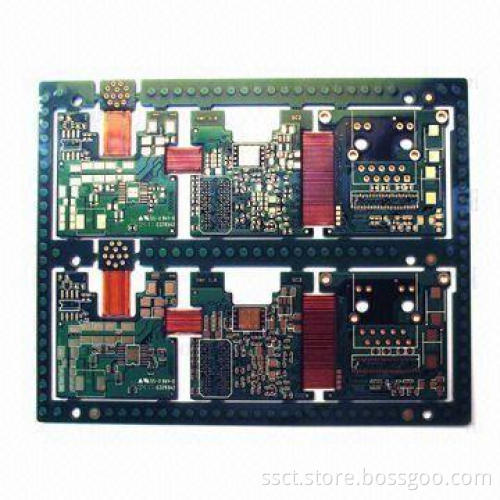

8-layer HDI Flex-rigid Board, Comes with ENIG Surface Finish and L1-L3, L6-8 Rigid

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Layer count: 8

Finish thickness: 1.18 ± 10%mm

Minimum width/spacing: 0.12/0.12mm

Surface finish: ENIG

Specialty:

Rigid: L1-L3, L6-8
Flex: L4-5 (solder mask both side)
The rigid board over flex part is to be cut out and plugged by peelable mask afterwards
L1-2, L7-8 laser drill: 0.2mm (L1-3)
L6-8 blind holes: 0.3mm
Drilling: 0.2mm (min)
Press 6 times

Rigid: L1-L3, L6-8

Flex: L4-5 (solder mask both side)

The rigid board over flex part is to be cut out and plugged by peelable mask afterwards

L1-2, L7-8 laser drill: 0.2mm (L1-3)

L6-8 blind holes: 0.3mm

Drilling: 0.2mm (min)

Press 6 times
