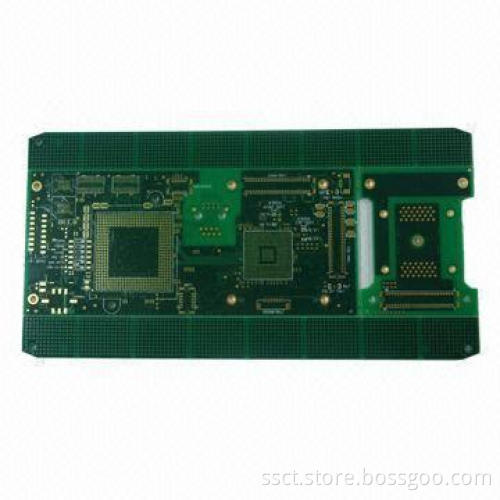

HDI 2 + (6) + 2 High-density Multilayer PCB with ENIG Surface Finish

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Specialty:

Layer count: 10

Finish thickness: 1.8 ± 10%mm

Minimum width/spacing: 3.5/3.5mil

Minimum via diameter: 0.3mm

Surface finish: ENIG

L1-2/L8-9/L9-10: laser blind via 0.13mm

L2-9: buried via of 0.3mm

All laser blind have been filled by plating

L1/L3/L4/L6/L7/L8/L10: different impedance with 100 ± 10%Ω, 96 ± 10%Ω

Characteristic impedance with 45 ± 10%Ω
