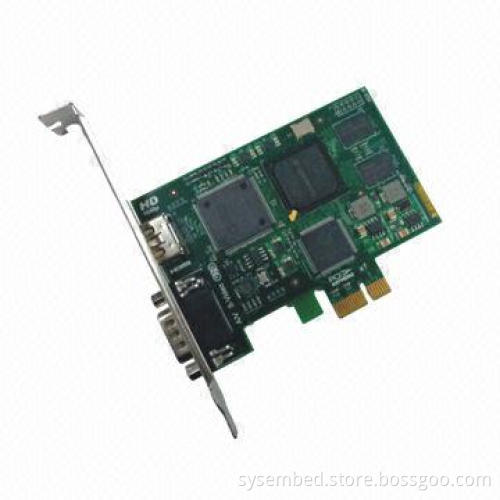

Streaming Video Capture Card, Single Channel HD, SVP101E-a

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit (LC, L/C)

Product Description

Description:

SVP101E can capture one high-definition video signal and one stereo analog audio signal
Video input can connect with HDMI, YPbPr, Composite Video Broadcast Signal (CVBS), Separate Video (S-Video)

Features:

Host interface PCI-Express x1, low profile, 200MB/s transmission bandwidth
Input interface 1 HDMI interface (DVI), 1 DB9 interface (to YPbPr, S-video, CVBS)
Maximum sampling rate CVBS: 54MHz (4x oversampling)
HDMI/DVI: 225MHz
On-board memory: 128MB DDR2, 160MHz of working frequency, 32-bit of bit wide
YPbPr input mode: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
DVI input mode: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
CVBS input standard: PAL/NTSC
HD output image mode size: 40x30-2048x1536
- Frame rate: 1-100fps
- Color: YUY2, UYVY, RGB24, RGB32, I420
SD output image mode size: 176x144-768x576
- Frame rate: 1-30fps
- Color: YUY2, UYVY, RGB24, RGB32, I420
Operating system: supports Windows XP/2003/Vista, /2008/7/2008 R2
Power consumption: ≥8W
Board size: 99.77mm x 68.88mm
