Product Description

Description:

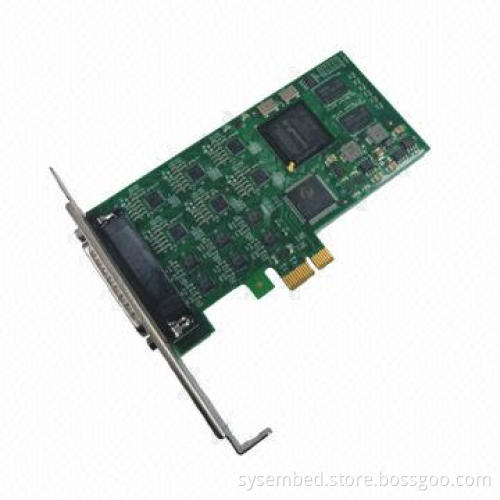

The SVP066Eis a standard definition multi-channel video capture card, it can simultaneously capture six standard-definition video signals and six stereo analog audio signals

Features:

Host interface: PCI-express X1, low-profile, 200MB/second transmission bandwidth
Input interface DB25 interface (connect with six CVBS, six unbalance stereo analog audio signals)
Maximum sampling rate: 54MHz (4x over-sampling)
Video sampling: 10 bits
On board memory: 128MB DDR2, 160MHz of working frequency, 32-bit of bit wide
Output image format size: 176 x 144-768 x 576, frame rate: 1-30fps
Color: YUY2, UYVY, RGB24, RGB32, I420
Operating system: supports Microsoft's Windows XP/2003/Vista/2008/7/2008 R2
Power consumption: ≤8W
Operating temperature: 0 to 50℃
Storage temperature: -20 to 70℃
Relative humidity: 5 to 90% RH
Board size: 123 x 64.5mm

The SVP066Eis a standard definition multi-channel video capture card, it can simultaneously capture six standard-definition video signals and six stereo analog audio signals

Host interface: PCI-express X1, low-profile, 200MB/second transmission bandwidth

Input interface DB25 interface (connect with six CVBS, six unbalance stereo analog audio signals)

Maximum sampling rate: 54MHz (4x over-sampling)

Video sampling: 10 bits

On board memory: 128MB DDR2, 160MHz of working frequency, 32-bit of bit wide

Output image format size: 176 x 144-768 x 576, frame rate: 1-30fps

Color: YUY2, UYVY, RGB24, RGB32, I420

Operating system: supports Microsoft's Windows XP/2003/Vista/2008/7/2008 R2

Power consumption: ≤8W

Operating temperature: 0 to 50℃

Storage temperature: -20 to 70℃

Relative humidity: 5 to 90% RH
