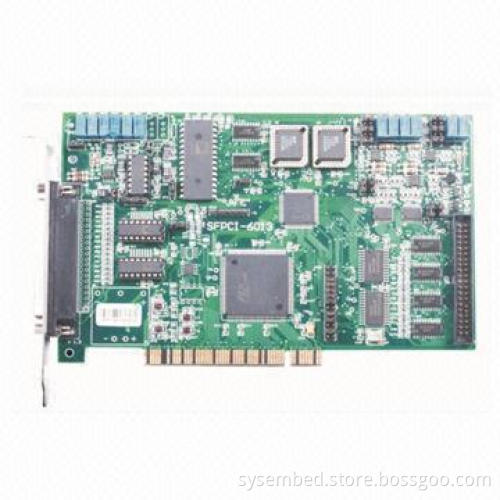

PCI AD Acquisition Card, SFPCI-6013

Get Latest Price

Payment Type:: Letter of Credit (LC, L/C)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit (LC, L/C)

Product Description

Description:

SFPCI-6013 is a collection of an economic type multifunctional data card, 16 ends channel or 8 channels differential analog input, the AD channel 12-bit 100KHz sampling rate, the 100KHz acquisition rate, acquisition of absolute and relative precision can reach ± 2LSB
Applicable to noise, interference of industrial control applications

Features:

AD channels: 16 single-ended, double-end 8-way
AD signal range: 0V~10V, -5V~+5V, -10V~+10V
Programmable amplifier ratio: 1, 2, 4, 8/1, 10, 100, 1000
Input impedance: ≥10MΩ
AD converter resolution: 12
AD conversion speed: 10us
Amplifier settling time: 7uS (0.01%)
AD conversion system pass rate: 100KHz
AD conversion linearity error: ±2LSB
DA channels: 2 channels
DA range: 0~2.5V, 0~5V, 0~10V, -2.5V~+2.5 V, -5V~+5V, -10V~+10V
DA converter resolution: 12
DA converter integrated error voltage mode: ≤0.1% FS
DI: 16 Road
DO: 16 Road
Input output: level TTL/CMOS level compatible

SFPCI-6013 is a collection of an economic type multifunctional data card, 16 ends channel or 8 channels differential analog input, the AD channel 12-bit 100KHz sampling rate, the 100KHz acquisition rate, acquisition of absolute and relative precision can reach ± 2LSB

Applicable to noise, interference of industrial control applications

AD channels: 16 single-ended, double-end 8-way

AD signal range: 0V~10V, -5V~+5V, -10V~+10V

Programmable amplifier ratio: 1, 2, 4, 8/1, 10, 100, 1000

Input impedance: ≥10MΩ

AD converter resolution: 12

AD conversion speed: 10us

Amplifier settling time: 7uS (0.01%)

AD conversion system pass rate: 100KHz

AD conversion linearity error: ±2LSB

DA channels: 2 channels

DA range: 0~2.5V, 0~5V, 0~10V, -2.5V~+2.5 V, -5V~+5V, -10V~+10V
