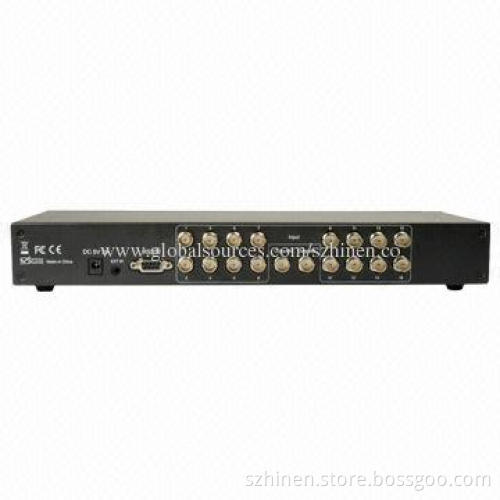

3G SDI 16 x 2 Switcher with Reclock, Supports Multiple Video Resolution

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

This product is specially designed with equalizer IC in its inputs and drive IC in its output

All of the inputs and output support long coaxial cable

Supports multiple video resolution:

Supports multiple color space:

RGB or YCbCr 4:4:4 sampled

YCbCr 4:2:2 or 4:2:0 sampled

Supports wide range of data rate: 270Mbps-2.97Gbps

Supports multiple deep color: 8, 10, 12-bit

Compatible with HD CCTV 1.0, HD-SDI (ST 292), 3G-SDI (ST 424) and SD-SDI (ST 259)

Supports relock can supports multiple slopes

Electrical protection:

SD 480i at 525i and 625i

HD 720p at 24/25/30/50/60

HD 1,080i at 50/60

HD 1,080p at 24/25/30

3G 1,080p at 50/60

Power reverse polarity protection

Power over-voltage protection, but voltage must <28V

ESD protect, contact discharge 8kV, air discharge 15kV
