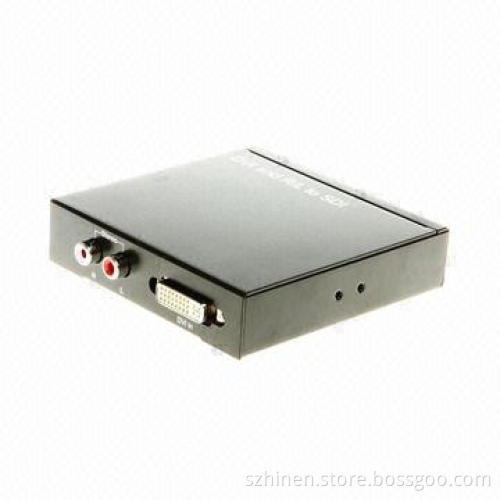

DVI and R/L to SDI Converter

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

This DVI and R/L to SDI Converter is used to convert the DVI and R/L signal into SDI signal and allows users to enjoy the image and audio on SDI Monitor, it can also send the DVI and R/L signal into SDI transmission network

Support multiple video resolutions:

SD 480i, 525i and 625i
HD 720p 24, 25, 30, 50 , 60,1080i 50, 60, 1080p 24, 25, 30,
3G 1080p 50 and 60

Support multiple color space:

RGB or YCbCr 4:4:4 sampled
YCbCr 4:2:2 sampled

Supports data rates: 270M~2.97Gbps.

Supports 8 bit, 10 bit, 12 bit of deep color.

SDI output. Support long coaxial cable, SD model 300 m, HD mode 220 m

3G mode100m (RG6 cable or its quite product)

SD 480i, 525i and 625i

HD 720p 24, 25, 30, 50 , 60,1080i 50, 60, 1080p 24, 25, 30,

3G 1080p 50 and 60

RGB or YCbCr 4:4:4 sampled

YCbCr 4:2:2 sampled
