3G SDI 8*8 Matrix with Reclock 3G SDI Matrix

3G SDI 8*8 Matrix with Reclock 3G SDI Matrix

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

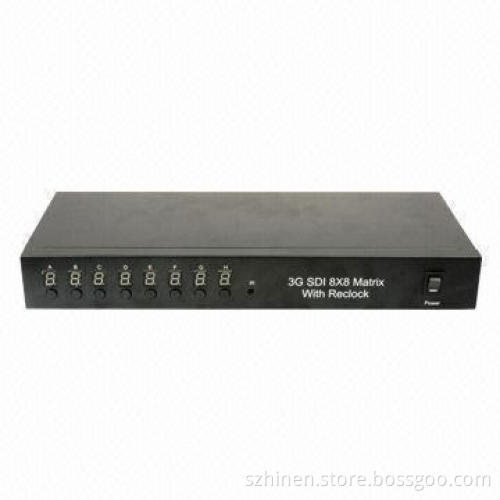

This is a 3G SDI 8×8 matrix with reclock. Any 8 SDI signal inputs can be arbitrarily switched to any 8 SDI outputs

This product is specially designed with equalizer IC in its inputs and drive IC in its output. All of the inputs and output support long coaxial cable

Supports multiple video resolution:

SD 480i @525i and 625i
HD 720p @ 24/25/30/50/60
HD 1,080i @50/60
HD 1080p @24/25/30
3G 1,080p @ 50/60

Supports multiple color space:

RGB or YCbCr 4:4:4 sampled
YCbCr 4:2:2 or 4:2:0 sampled

Supports wide range of data rates: 270Mbps-2.97Gbps

Supports multiple deep color: 8bit, 10bit, 12bit

Compatible with HDcctv 1.0, HD-SDI (ST 292), 3G-SDI (ST 424) and SD-SDI (ST 259)

Supports reclock function, can support multiple slopes

SD 480i @525i and 625i

HD 720p @ 24/25/30/50/60

HD 1,080i @50/60

HD 1080p @24/25/30

3G 1,080p @ 50/60

RGB or YCbCr 4:4:4 sampled

YCbCr 4:2:2 or 4:2:0 sampled
