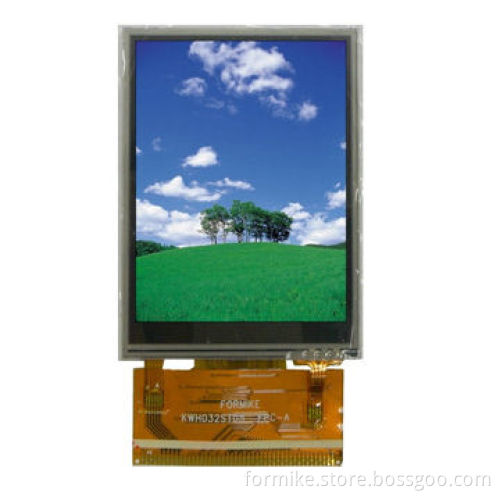

3.2-inch TFT LCD Module with 240 x 320-pixel Resolution and Touch Panel, Supports CPU/RGB Interface
  • 3.2-inch TFT LCD Module with 240 x 320-pixel Resolution and Touch Panel, Supports CPU/RGB Interface
3.2-inch TFT LCD Module with 240 x 320-pixel Resolution and Touch Panel, Supports CPU/RGB Interface

3.2-inch TFT LCD Module with 240 x 320-pixel Resolution and Touch Panel, Supports CPU/RGB Interface

Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Display size: 3.2 inches
  • Resolution: 240 x RGB x 320 dots Stripe type
  • Driver element: a-Si TFT active matrix
  • Display types: normally white, transmissive, 46 pins
  • Driving IC: ILI9325D or equivalent
  • Interface: MCU I/F( 8/9/16/18 bits), RGB I/F (18 bits)
  • Backlight: LED
  • Module size (H x V x T): 55.94 x 77.6 x 3.6mm
  • Active area (H x V): 48.6 x 64.8mm
  • Touch panel: optional
