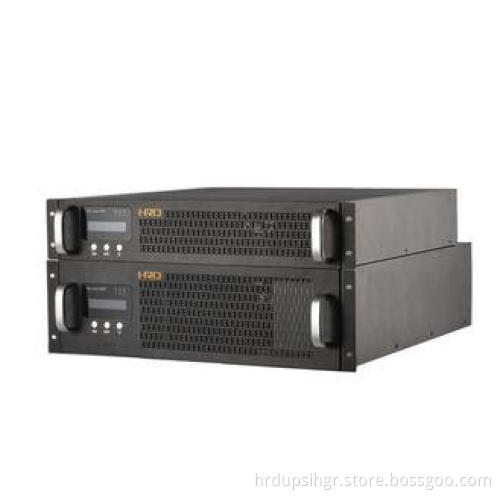

Rack Mount Online hf ups 1-3KVA 220VAC

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen ,China

Product Description

Main Features:
19inch,2U and 3U Rack mount
High frewuency and online double conversion
Wide input voltage (110-285Vac or 65-148Vac)
Self-diagnosis system at ups start
Digital control technoloy and advanced PFC
Output PF0.8,(0.9 optional)
Lighting and surge protection 1050j
Generator compatible
Smart RS232(USB,SNMP OPTIONAL)
EMI/RFI noise filter
Overview
With true double-conversion design, PowerMaster series provides powerful and overall protection to your sensitive devices. It can accept wider input voltage for harsh environment. It's perfect protection for your precisous servers and workstaiosn.
Specifications
Model	PMR01S	PMR01L	PMR02S	PMR02L	PMR03S	PMR03L
Capacity	1KVA/0.8kW	1KVA/0.8kW	2KVA/1.6kW	2KVA/1.6kW	3KVA/2.4kW	3KVA/2.4kW
Phase	Single
Input voltage
Input PF	above 0.98
THDi	less than 5%
Rated voltage	220v/230v/240Vac or 110/120/127Vac
Input voltage range	Low line transfer:176 VAC ± 3% @ 100% load 130 VAC ± 3% @ 50% load 85-148Vac( for 110/120/127Vac)
	Low line comback:188VAC ± 3% @ 100% load 142 VAC ± 3% @ 50% load; 100vac±5Vac(110/120/127Vac)
	High Line Transfer:286 ± 3%148Vac ± 3%(for 110/120/120vac);
	High Line Come Back:271 ± 3%; 145Vac±5Vac(110/120/127Vac)
Rated frequency	50/60hz(auto sensing)
Input frequency range	46~54 Hz ◎ 50 Hz / 56~64 Hz ◎ 60 Hz
By-pass input
Input voltage range	170VAC—270VAC±5V
Frequency following range	46~54 Hz ◎ 50 Hz / 56~64 Hz ◎ 60 Hz
Recharge battery
Floating charge voltage	28/41VDC		55/84/110VDC		84/110VDC
Recharging current	1A(inbuilt battery)	8A	1A(Rack batt.case)	8A	1A(Rack batt.case)	8A
Battery
Battery quantity	24/36VDC		48V/72/96VDC		72/96VDC
AC output
Power factor	0.8
Phase	single
Rated voltage	220v/230v/240v+/-1.5%
Frequency	50/60hz
Frequency stability	±0.1HZ(battery inverter)
Voltage stability	within±1.5%( Static)
Crest factor	3:1(max)
Wave distortion	Linear load less 3%,Non-linear load less 5%;
Over load ability	30s when overload is 108%~150%;200ms above 150%;
Transfer time	0ms
Alarm
AC abnomal	Alarm every 4 seconds
Battery low voltage	Keep alarm every 1 second
Overload	Keep alarm every 0.5 second
Failure	Keep alarm
System
Efficiency	above 87%
Display	LCD+LED
Protection	Output short circuit , Overload , Output low voltage, Battery low voltage, Over-temperature etc.
	over-voltage protection,over-tempreture protection for charger PCB,and soft-start function for each function module.
Infterface	RS232(USB OPTIONAL)
Working Temp.	0~40℃
Relative humidity	0~90%( No coagulation)
Cooling	Intelligent speed-control Fan
Input & output	Socket(Optional)
Others
Surge protection	IEC60664—1 Graded protection
EMI	EN 55022 Grade A
ESD	IEC 1000-4-2:Grade 3
EFT	IEC 1000-4-4:Grade 3
RS	IEC 1000-4-3:Grade 3
SURGE	IEC 1000-4-5:Grade 3
Physical
Weight(N/G)kgs	12.5/14.5	7.0/8.0	11.0/13.0	28.0/31.0	11.0/13.0	28.0/31.0
Unit Size (DWH)	440* 440 *87 mm		440* 440 *87 mm(long run model)
			440* 440 *134 mm( inbuilt battery model)
Packing Size (DWH)	570570185mm		570570185mm(long run model),2U
			640570 230mm( inbuilt battery model),3U
