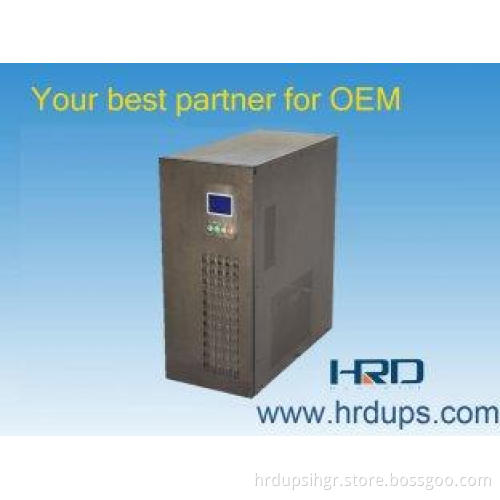

PMA Series Online HF UPS4-20KVA,120VAC
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen China |
|---|
Power Master(SA) Series Online HF UPS 6-20kva, is DSP controlled updated Online HF UPS,Specially for 110V/120V, 127V etc. power grid net.
It has high adaptability and flexibility anddesigned to provide an optimized price/performance ratio. Its cut-edge digital control technology of DSP (Digital Signal Processor), can greatly improve the product performance and system reliability, and deliver a compact integration with higher power density.
Perfect Application:
Network, data centre, servers and workstations, office etc.
Main Features:
1)High Frequency and double conversion
2) Fully digitized control
3) Output power factor:0.7(0.8OPTIONAL)
4)Input output 110V/120V/127V
5) DC192V
6) Environment protection
7) Smart RS232(SNMP card optional)
8)Cold start
|
Model |
PMA6000S |
PMA6000L |
PMA 10000S |
PMA 10000L |
PMA 20000S |
PMA 20000L |
|||||||
|
Capacity |
6KVA |
6KVA |
10KVA |
10KVA |
20KVA |
20KVA |
|||||||
|
Phase |
Single |
||||||||||||
|
Input power factor |
Above 0.98 |
||||||||||||
|
Input distortion |
< 5% |
||||||||||||
|
Input voltage range |
60-140V |
||||||||||||
|
Input frequency range |
45-55HZ |
||||||||||||
|
Charging voltage |
220VDC |
||||||||||||
|
Recharging current |
1A |
5A |
1A |
5A |
1A |
5A |
|||||||
|
BATTERY TYPE |
Free Maintenance Lead-Acid battery |
||||||||||||
|
BATTERY CAPACITY |
16pcs 12v*9ah |
External battery |
16pcs 12v*9ah |
External battery |
16pcs 12v*9ah |
External battery |
|||||||
|
Output PF |
0.7/0.8 |
0.7/0.8 |
0.7/0.8 |
||||||||||
|
Rated voltage |
110v/120v/127v |
||||||||||||
|
Output Frequency |
50/60HZ(AUTO SENSE) |
||||||||||||
|
Voltage stability |
Within 1.5% |
||||||||||||
|
Output current crest factor |
3:1 |
||||||||||||
|
Wave distortion |
Linear load <3%, Nonlinear load <5% |
||||||||||||
|
Over load ability |
105%~125%10min;125%~150% 1min;>150%10ms |
||||||||||||
|
Transfer time |
AC-battery, zero transfer time |
||||||||||||
|
AC abnormal |
Alarm every 4 seconds |
||||||||||||
|
Battery low voltage |
Keep alarm every 1 second |
||||||||||||
|
Overload |
Keep alarm every 0.5 second |
||||||||||||
|
Display |
High Definition LED and LCD, clear & friendly display interface |
||||||||||||
|
Efficiency |
above87%(full load) |
||||||||||||
|
Protection |
Output short circuit, Overload, Output low voltage, Battery low voltage, Over-temperature, etc |
||||||||||||
|
communication |
RS232(Standard), RS485 and SNMP card(optional) |
||||||||||||
|
Working Temp. |
0~40℃ |
||||||||||||
|
Relative humidity |
0~90%( No coagulation) |
||||||||||||
|
Cooling |
Intelligent speed-control Fan |
||||||||||||
|
Input & output |
Terminals |
||||||||||||
|
Surge protection |
IEC60664—1 Graded protection |
||||||||||||
|
EMI |
EN 55022 Grade A |
||||||||||||
|
ESD |
IEC 1000-4-2:Grade 3 |
||||||||||||
|
EFT |
IEC 1000-4-4:Grade 3 |
||||||||||||
|
RS |
IEC 1000-4-3:Grade 3 |
||||||||||||
|
SURGE |
IEC 1000-4-5:Grade 3 |
||||||||||||
|
Weight(N/G)KG |
40/42 |
72/75 |
42/45 |
74/77 |
80/85 |
115/120 |
|||||||
|
(W*D*H)mm |
260*570*717 |
||||||||||||
All specifications subject to change without notice
