VGA Port 12.1 TFT LCD Monitor , 1024*768 Desktop LCD Car Sc
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

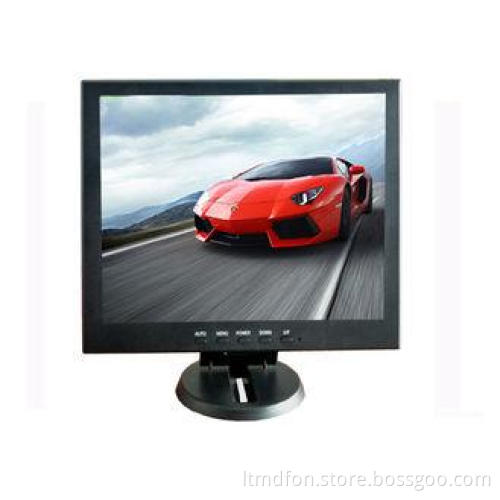

VGA Port 12.1 TFT LCD Monitor , 1024*768 Desktop LCD Car Screen
QUICK DETAILS
1.Standard VGA port, can add AV/TV/HDMI/DVI input
2, Power supply DC 12V
3,1024*768 or 800*600 resolution / 60Hz
4, metal case / placstic case for choice
5, OEM/ODM offered
6, 13 years experience
Application
Desktop Computer / Pos / Car / ATM / Kiosk / Transportation / Industrial Automation / Medical Treatment
1 . The super light ultra-thin design , easy to use and beautiful .
2 . Automatically adjustment function for VGA image reproduce rate .
3 . Our products have passed CE , FCC certification .
4 . Fast response time , the picture is really rapidly without delay .
5 . The built-in power support low energy consumption , meanwhile lifetime of LCD screen is more than 50000 hours
Specification
Model NO. | 1201 |
Panel size | 12 inch TFT-LCD |
Visual size | 246*185mm |
Standard Resolution | 800*600 and 1024*768 option |
Number of Colors | 16.2M |
Brightness | LCD panel:300cd/m2 |
Response time | 8ms |
View angle | Horizontal:160° |
Vertical:130° | |
Contrase ratio | 400:1 |
Video input format | (analog) RGB |
Connector | VGA (D-sub) |
Frequency | 30~80KHz/60~75Hz |
Power supply | External Power Supply:100 to 240V AC |
Operation Environment | Workable Temperature:-10 to 60°C |
Operate relative humidity:20% to 80%; | |
Net weight | 2.5 Kgs/pcs |
Gross weight | 3.0 Kgs/pcs |
Power consumption | Max 30W |
Setup (optional) | 1) provide wall brackets for wall-mounting, |
2) provide base to support the monitor | |
OSD control | AUTO,+,POWER,-,MENU |
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | |
Certificate | CE, IEC |
Warranty | 1 year,provide spare parts |
Monitor size | 298*243*44mm |
Each unit box size | 333*135*315mm |
Package size | 6pcs in a carton,carton size:650*450*390mm |
Description
Advantage of us
1. Professional. We specialized in monitors since 2001.
2. Excellent team. All the sales in our international sales team own a university degree. They have good condition in English, be full of enthusiasm, diligent and responsible for customers.
3. Restrict QC Team. All the products we will check the quality before delivery no matter the samples or bulk order. We have 5 people in QC team. Everyone gets their function in every step.
4. Stable quality. All of our products own 90 days return policy, 1 year warranty for panel, 3 years in parts.
5. Proven technique. We have our own D&R department for our customers do custom functions accordingly.
6. Small QTY for LOGO stamped. We allow small qty to make your own logo since we know that in the feature, BRAND item is trend for most companies.
Warranty ;
1 year warranty in panel and 3 years in spare parts.
Payment Terms;
T/T , Western Union
Leadtime;
2 working days for sample , 10-15 days for bulk order ( based on quantity )
Shipping Method;
By sea / air / express
Image of factory
