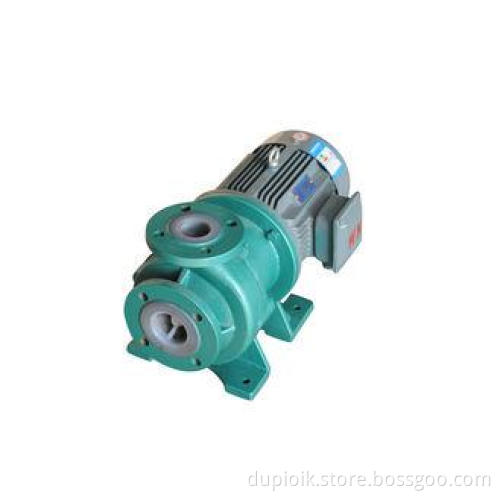

Close Coupled Magnetic Drive Centrifugal Pump For Chemical

Close Coupled Magnetic Drive Centrifugal Pump For Chemical Circulation 2.2 - 5.5KW

Overview:

CQB type fluorine plastic magnetic pump is a kind of chemical process pump that is application of modern magnetics principles, using the permanent magnets, to realize non-contact indirect transmission of liquids. When the motor drive exterior rotor (namely the outside magnets) rotates, through the magnetic field to drive the inside rotor (namely inside magnetics) assembly and the impeller rotates synchronously, medium is completely closed in the stationery isolation chamber, so as to achieve leak free pumping purpose, thoroughly solved the problem of the leakage of the shaft sealing transmission pumps, is a fully sealed, no leakage and pollution-free new industry pump.

Features:

1. no leakage

2. Magnetic drive motor

3. Anti-corrosion fluoroplastic material

4. Low price, bulk in stock

Working Principle:

Magnetic pump is composed of pump, magnetic clutch, motor three parts. Key components magnetic transmission device includes outside and inside magnetic rotor, and not magnetic isolation chamber. When the motor rotates the outside magnetic, the magnetic field will penetrate into the air gap and the non-magnetic material, driving the magnetic rotor rotating with connected impeller to rotate synchronously, realize dynamic non-contact transfer, change the dynamic seals into static seals. Because the pump shaft, inner magnetic rotor is completely sealed by pump body, isolation set, thus completely solved "dripping, leakage" problem, eliminate the problem that petrochemical industry inflammable, explosive, toxic and harmful media leaked through the pump seal, guarantee worker's physical and mental health and safety production.

Applications:

Our products are widely used in chemical, making acid, alkali manufacturing, pesticide, dye, medicine, papermaking, electroplating, electrolysis, pickling, scientific research institutions, national defense industry and other industries conveying arbitrary concentration of acid, alkali, oil, the rare and precious liquids, toxic liquid, volatile chemical medium, etc.

Model Significance:

CQB 15 -15-65F

CQB - Centrifugal pump driven by CQB magnetic

15 - The pump’s inlet diameter is 15mm

15 - The inlet diameter is 15mm

65 - The impeller’s nominal diameter is 65mm

F- The material of the liquid carrying part is fluoroplastic alloy
