Magnetic Driven Permanent Magnet Pump With Electric Motor C

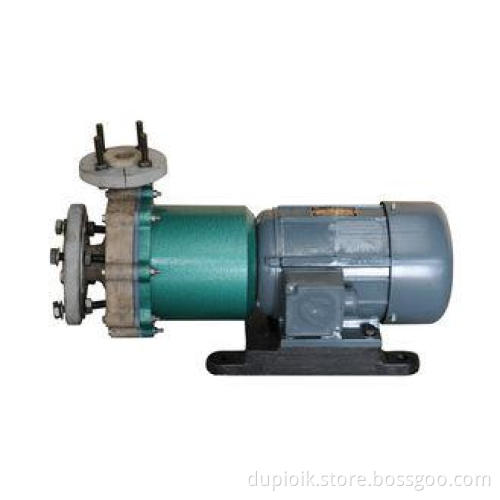

Magnetic Driven Permanent Magnet Pump With Electric Motor CQB 65 -40 -200FA

Model Significance:

CQB 65 -40 -200FA

CQB - Centrifugal pump driven by CQB magnetic

65 - The pump’s inlet diameter is 40mm

40 - The inlet diameter is 40mm

200 - The impeller’s nominal diameter is 125mm

F- The material of the liquid carrying part is fluoroplastic alloy

A- It means distinction code

Sinofine CQB magnetic driving centrifugal pumps have no direct connection between the motor shaft and the impeller, so no gland is needed. There is no risk of leakage, unless the casing is broken.They are often used where leakage of the fluid pumped poses a great risk. Sinofine CQB magnetic pump can resist aggressive fluid in the chemical or nuclear industry, or electric shock garden fountains.Sinofine CQB magnetic pump works via a drive magnet, 'driving' the pump rotor, which is magnetically coupled to the primary shaft driven by the motor. It is a kind of magnetically coupled pumps, or magnetic drive pumps, vary from the traditional pumping style, as the motor is coupled to the pump by magnetic means rather than by a direct mechanical shaft.

Sinofine CQB magnetic driving centrifugal pump has high efficiency/energy-saving design. The maximum pump efficiency reaches 50 to 55%, the highest level for resin pumps. In designing the pump, energy-saving was taken into full consideration. The pump is suitable for chemical liquid progress. So it is an ideal for tough and heavy circumstances like inflammable, explosive and strongly corrosive and toxic. They have compact design with optimized construction to make it pump with easy maintenance and inspection.The structure is simple, with a minimum of components. In addition, the major parts are modularized for easy and quick disassembly and inspection. The expendable parts can be replaced individually..In the driving device the initiative magnet junction box is directly installed onto the motor shaft. The pump chamber is totally sealed, and is propelled to rotate by the magnetic impeller on the magnetic coupling indirect driving pump shaft, its structure tight, safe, and energy-saving.
