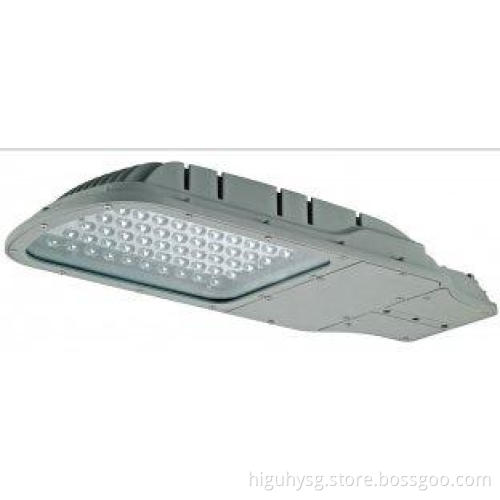

Energy Saving AC85 - 265V, 80W, 50 - 60 HZ BridgeLux Led Road Lamp for Parks, Campus, Farm
1. Perfect lighting design ensures brightness and uniform illumination, and meets different requirements of road lighting.
2. US Bridgelux high-lumen integrating encapsulated LED chip.
3. Well-designed heat radiation, reaching the best heat radiation effect.
4. Die-cast aluminum alloy housing guarantees its high soundness;
5. Long life power driver ensures above 50000 hours.
6. Environmental friendly and energy-saving, no mercury or lead.
7. Consume 50%-70% less power than HID street light
Applications:
These street lights are designed for main road, highway, tunnel, bridge, avenues, highways, crossing, rural road, industrial estate, national road, parks, campus, boat dock, remote area, military base, farm, etc
Specifications:
|
Electrical Parameters
|
Input Voltage |
AC85-265V |
FrequencyRange |
50-60 HZ |
|||
|
LED Type |
BridgeLux
|
Light Maintain Flux |
100lm-110lm/W (6500K) |
||||
|
Power Factor |
> 0.90 |
||||||
|
Working Life |
50000 hours |
TJ |
60 ℃±10 % |
||||
|
IP Grade |
IP65 |
Working Environment |
-40℃~ 55℃ Humid:10%-90% |
||||
|
Model
|
LED Power |
Light Power |
Illumination |
Lamp Size (cm) |
Net Weight (kg)
|
||
|
MountHeight6M |
Mout Height8M |
MountHeight10M |
|||||
|
CO-L302-60W |
60*1W |
60W |
32 lux |
21 lux |
10 lux |
57.3*24.3*7 |
8+5% |
|
CO-L302-80W |
80*1W |
80W |
45 lux |
29 lux |
15 lux |
57.3*24.3*7 |
8.3+5% |
|
CO-L302-120W |
120*1W |
120W |
86 lux |
55 lux |
32 lux |
70*30*7 |
12.5+5% |
|
CO-L302-150W |
150*1W |
150W |
110 lux |
62 lux |
39 lux |
78.5*35*7 |
14.5+5% |
- Super-slim lamp body with superb heat conduction rate
- Flexible solution for various wattage requirement . 14x1watts per unit addable ranging from 42w to
112w.
- US Bridgelux high-lumen integrating encapsulated LED chip.
- reliable and stable.
- Environmental friendly and energy-saving. Contains no mercury or lead. Consume 50%-70% less power than HID street light
