Custom Led Road Lamp 36V DC 100W 120W 160W 180W 200W with A
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|
Custom Led Road Lamp 36V DC 100W 120W 160W 180W 200W with Aluminum Alloy Housing
Specifications:
|
OPTICAL |
LED Power Consumption |
2X50w |
2X60w |
2X70w |
2X80w |
2X90w |
2X100w |
|
System Power Consumption |
110w |
130w |
155w |
175w |
195w |
210w |
|
|
LED Initial Flux |
100lm-110lm/watt(*Pure White 6000K-6500K) |
||||||
|
Illumination (Enadir) (LED Power=180W PW6500K) |
MountHeight= 6M : >118 lux MountHeight= 8M : >65 lux MountHeight= 10M : >43 lux MountHeight= 12M : >30 lux |
||||||
|
CRI |
WW: Ra>60 PW: Ra>70 |
||||||
|
Light Distribution Curve |
Asymmetric (Bat Wing)/ Rectangular Beam |
||||||
|
Beam Angle |
120-140 degrees |
||||||
|
Light Decay |
< 15% (20, 000 hours) |
||||||
|
ELECTRICAL |
Input Voltage |
AC85V-AC265V, AC277V+ (50Hz-60Hz) |
|||||
|
Working Voltage |
36VDC |
||||||
|
TJ |
60℃±10 % |
||||||
|
Power Efficiency |
>84% |
||||||
|
Power Factor |
>0.95 |
||||||
|
IP Grade |
IP67 |
||||||
|
MECHANICAL |
Dimensions |
L81*W34*H19cm |
|||||
|
Net Weight |
10.0KG±5 % |
||||||
|
Material |
Cu-Mg-Al alloy |
||||||
|
Working Environment |
Temp: -40℃ ~ 55℃ Humid:10%-90% |
||||||
|
Dimension of pipe for installation |
Φ62mm |
||||||
Description:
rfect lighting design ensures brightness and uniform illumination, and meets different requirements of road lighting.
2. US Bridgelux high-lumen integrating encapsulated LED chip.
3. Well-designed heat radiation, reaching the best heat radiation effect.

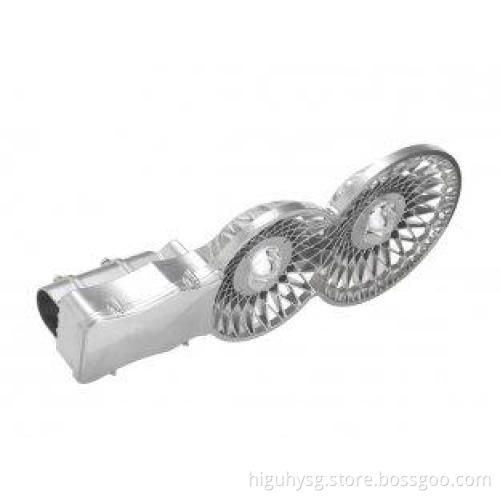

4. Die-cast aluminum alloy housing guarantees its high soundness;
5. Long life power driver ensures above 50000 hours.
6. Environmental friendly and energy-saving, no mercury or lead.
7. Consume 50%-70% less power than HID street light
Applications:
These street lights are designed for main road, highway, tunnel, bridge, avenues, highways, crossing, rural road, industrial estate, national road, parks, campus, boat dock, remote area, military base, farm, airport , etc
