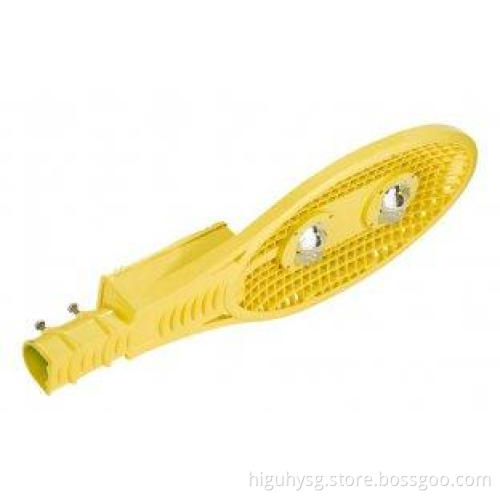

Bridgelux high - lumen IP67 Led Road Lamp 120W 140W 160W 180W 200W Ce & RoHs approval
Specifications:
|
OPT ICAL |
LED Power Consumption |
2X50w |
3X30w |
2X60w |
2X70W
|
2X80W |
3X50W |
2X90W |
2X100W
|
|
System Power Consumption |
110w |
100w |
130w |
155w |
175w |
165w |
195w |
210w |
|
|
LED Initial Flux |
100lm-110lm/per watt (*Pure White 6000K-6500K) |
||||||||
|
Illumination (Enadir) (LED Power=180W PW6500K) |
MountHeight= 6M : >115 lux MountHeight= 8M : >64 lux MountHeight= 10M : >42 lux MountHeight= 12M : >30 lux |
||||||||
|
CRI |
WW: Ra>60 PW:Ra>70 |
||||||||
|
Light Distribution Curve |
Asymmetric (Bat Wing)/ Rectangular Beam |
||||||||
|
Beam Angle |
120-140 degrees |
||||||||
|
Light Decay |
< 15% (20, 000 hours) |
||||||||
|
ELECTRICAL |
Input Voltage |
AC85V-AC265V, AC277V+ (50Hz-60Hz) |
|||||||
|
Working Voltage |
36VDC |
||||||||
|
TJ |
60℃±10 % |
||||||||
|
Power Efficiency |
>85% |
||||||||
|
Power Factor |
>0.95 |
||||||||
|
IP Grade |
IP67 |
||||||||
|
MECHANICAL |
Dimensions |
L95*W34*H19cm |
|||||||
|
Net Weight |
12.0KG±5 % |
||||||||
|
Material |
Cu-Mg-Al alloy |
||||||||
|
Working Environment |
Temp: -40℃ ~ 55℃ Humid:10%-90% |
||||||||
|
Dimension of pipe for installation |
Φ62mm |
||||||||
Description:
1. Perfect lighting design ensures brightness and uniform illumination, and meet different requirements of road lighting.
2. US Bridgelux high-lumen integrating encapsulated LED chip.
3. Well-designed heat radiation, reaching the best heat radiation effect.
4. Die-cast aluminum alloy housing guarantees its high soundness;
5. Long life power driver ensures above 50000 hours.
6. Environmental friendly and energy-saving, no mercury or lead.
7. Consume 50%-70% less power than HID street light
Applications:
These street lights are designed for main road, highway, tunnel, bridge, avenues, highways, crossing, rural road, industrial estate, national road, parks, campus, boat dock, remote area, military base, farm, airport, etc.
