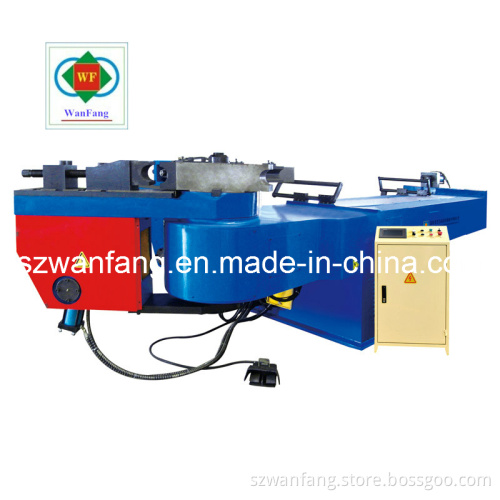

Hydraulic Tube Bender Wfync133X14
- Payment Type:
- T/T, D/P, Western Union, Paypal, Money Gram
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Payment Type: | T/T, D/P, Western Union, Paypal, Money Gram |
Product Description
Product Description
1. With the function of push-assist, PLC program as control system, touch-screen HMI, it can memory 120 records of working data and set 12 angle data max each file.
2. With the PLC program, you can select JOG, STEP and Semi-automatic operation.
3. It also can count the pieces number itself as well as memory when power off.
4. The rotated angle is positioned and controlled by optical-electric encoder that make the positioning be of good precision.
| Specification/Model | WFYNC |
| Max. Bending capacity | Φ133x14Q. |
| Yield Lim.(Mpa) | 240 |
| Max. Bending angle(°) | 195 |
| Min. Centerline radius(mm) | 400 |
| Range of centerline radius(mm) | R180-660 |
| Clamped die stroke(mm) | 150 |
| Bending speed(r/min) | 0.8 |
| Standard mandrel length(mm) | 4500 |
| Mandrel stroke(mm) | 320 |
| Hydraulic system pressure(Mpa) | 15 |
| Motor rotation speed(r/min) | 1460 |
| Motor power(kw) | 18.5 |
| Dimensions: L*W*H(m) | 6.1*2.1*1.5 |
