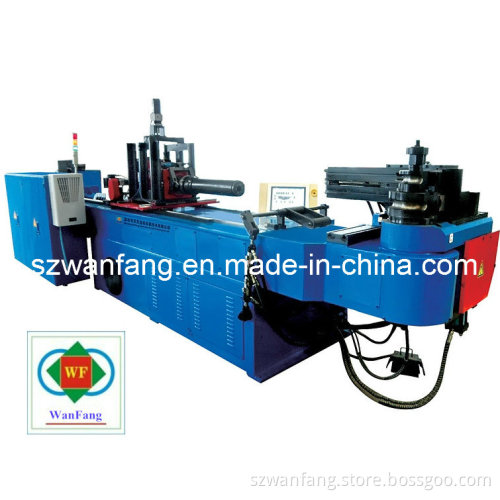

Double Molds CNC Tube Bending Machine Wfcnc76X8
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Payment Type: | L/C, T/T, D/P, Paypal, Money Gram, Western Union |
Product Description
Product Description
1. Automatic recognition of power in machine and work piece, the processing is both quick and good
2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.
3. The whole operation is in the computer, simple, quick and correct
4. Picturized programming system: Draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
5. Rebound test: Comparison test on the features of lots of pipe materials
6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
7. Automatic drawing of the graphics of dies-clear help to develop new products
8. Over-all inspection: Hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production
2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.
3. The whole operation is in the computer, simple, quick and correct
4. Picturized programming system: Draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
5. Rebound test: Comparison test on the features of lots of pipe materials
6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
7. Automatic drawing of the graphics of dies-clear help to develop new products
8. Over-all inspection: Hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production
| Specification/Model | WFCNC-76x8 | ||
| Max. bending capacity(mm) | Φ76x8 | ||
| Min. bending capacity(mm) | Φ20 | ||
| Max. bending radius(mm) | 300 | ||
| Min. bending radius(mm) | 30 | ||
| Max. bending angle | 190(193) | ||
| Length of mandrel(mm) | 3000 | ||
| Mandrel stroke(mm) | 150 | ||
| Mandrel adjustment(mm) | 50 | ||
| Clamp die stroke(mm) | 200 | ||
| Clamp die return stroke(mm) | 220 | ||
| Follower die stroke(mm) | 700 | ||
| Pipe end Min. length(mm) | 160 | ||
| Tools centerline height(mm) | 50 | ||
| Working height(mm) | 1015 | ||
| Speed range | Bending speed C(r/min) | 0-13 | |
| Feeding trolley walking speed Y(r/min) | 0-45 | ||
| Clamping set speed B(r/min) | 0-25 | ||
| Pre-set speed(each axis-CNC) | 9 | ||
| Working accuracy | Bending accuracy C axis(°) | ±0.05 | |
| Feeding accuracy Y axis(°) | ±0.1 | ||
| Rotary accuracy B axis(°) | ±0.05 | ||
| Capacity of memory | 10^5 | ||
| C-axis stall torque(N.m) | 35900 | ||
| Motor power (KM) | 23(30) | ||
| Hydraulic system pressure(Mpa) | 15 | ||
| Hydraulic tank capacity(L) | 450 | ||
| Dimensions: L*W*H(m) | 5.2*1.9*1.8 | ||
