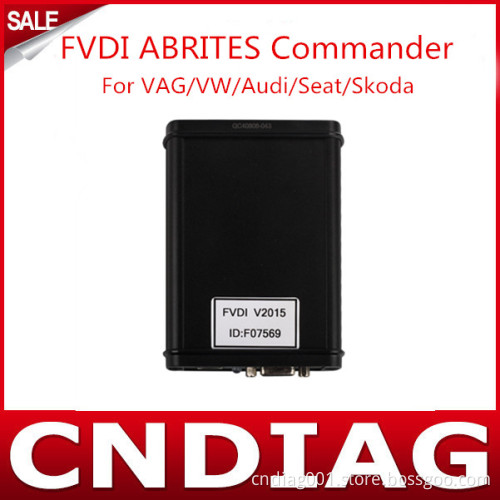

Fvdi Abrites Commander for VAG/Vw/Audi/Seat/Skoda (V24) Software USB Dongle

FVDI ABRITES Commander For VAG/VW/Audi/Seat/Skoda

Highlights:
1. Software Version: 24
2. Languages: English, Germany, Spanish, French, Russian, Italian, Danish, Czech, Chinese, Bulgarian
3. Update: Before update, you need advise the FVDI ID first, we will check if the ID is in the update list which can be update by email, if not in the list, can not do it yourself. You need send back the multiplexer to us for updating. And you need pay for the shipping cost of it
4. Buy This for VAG for VW for FVDI, you can get Hyundai/KIA/Tag Key Tool software and VVDI ImmoPlus V20.4 Free

Top 8 Reasons To Get VAG FVDI Commander
1. Reading Pin code by OBDII
2. Programming keys by OBDII. Preparation of dealer's keys.
3. Mileage recalibration by OBDII
4. Clearing crash data DTCs by OBDII
5. Read/Program flash memory of engine control units by OBDII. Options for resetting the number of flashing attempts.
6. Exchange speed limit of MMI-TV system
7. Coding calculator - supported short/long coding
8. Synchronization/Adaptation KESSY and ELV

FVDI Commander for VAG Standard Diagnostic Functions:
1. Connect to the device using KWP2000 over TP2.0, KWP2000 over TP1.6, UDS over ISO transport protocol (CAN), KWP1281 or KWP2000 over K-Line
2. For all electronic control units reading identification data
3. For all electronic control units read error (DTCs)
4. For all electronic control units clear error (DTCs)
5. Output tests
6. Control unit coding
7. Scan all units
8. Broadcast requests
9. Measured values
10. Adaptation

FVDI Commander for VAG Special functions:

Instrument CAN

- Mileage recalibration by OBDII - for VW Golf 6, for VW Multivan 2009+, for VW EOS 2009+, for VW Caddy 2009+, for VW Scirocco, for VW Polo 2009+, for VW Bora 2010+, for VW Jetta 2010+, for VW Passat CC, for VW Amarok, for Skoda Octavia II 2009+, for Skoda Superb 2009+, for Skoda Fabia 2009+, for Skoda Yeti 2009+, for Seat Leon 2009+, for Seat Altea 2009+, for Seat Exeo 2009+, for Seat Ibiza 2009+, ...
- Added support for VDO Instrument Cluster 2006+
- Read/Program memory of instrument cluster immobilizer
- Reading security access code of the IMMOBILIZER
- Reading security code (PIN) and component protection by OBDII - VW CRAFTER
- Read/Write immobilizer data in VDO dashboards with NEC microcontroller (2009+) by OBDII
- Read/Write immobilizer related data

EZS - Kessy (Q7/A6/Allroad)
- With this function you can prepare dealer key/learn dealer key
- Read/Write eeprom from EZS - Kessy (Q7/A6/Allroad)

Instrument K-Line
- With this function you can establish disgnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000)
- You can Read/Change odometer value
- Read PIN code
- Read/Write eeprom
- Read ROM/Flash from the Instrument cluster
- Automatic removing of "DEF error" for Audi A4

Instrument cluster BOSCH RB8

Engine Control Unit
- Read EDC17/MED17 flash memory
- Read/Write of flash memory (EDC15, EDC16 all types Read/Write Flash memory via OBDII (K and CAN). Calculation of
Checksums while programming, ME7.1.1, MED9. X, ME7.5)
- Read/Write flash counters (EDC16)
- Read/Write eeprom (VAG-EDC15X, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8. )
- Extracting Security access code / PIN (EDC15, ME7. X, VAG-Cartronic ME7.8, EDC16, EDC17, MED9. X, Simos PPD)
- Extracting Component security bytes (EDC15, ME7. X, VAG-Cartronic ME7.8, EDC16, MED17.5. 1, MED 9. X, Simos PPD)
- Enable/Disable immobilizer (EDC15, ME7. X, EDC16)
- Mileage recalibration (EDC15, EDC16)

Component Protection Manager
- Component Protection Manager - adaptation of spare part (used electronic control units) and programming component protection of Audi A6/Q7/Allroad/A4/A5/Q5


...
