Best Quality Gm Mdi Tech3 Tech 3 Interface Support Firmware Update

GM MDI diagnostic all new gm car from 2010 year. Gm mdi programmer all gm cars with fast speed. Gm mdi use gds 2 software latest version.

GM MDI can test all GM car from 1990---2012 year.


GM MDI diagnostic all new gm car from 2010 year. Gm mdi programmer all gm cars with fast speed. Gm mdi use gds 2 software latest version.


GM MDI hardware kit.
Original main unit from BOSCH.
One year's warranty and free shipping.

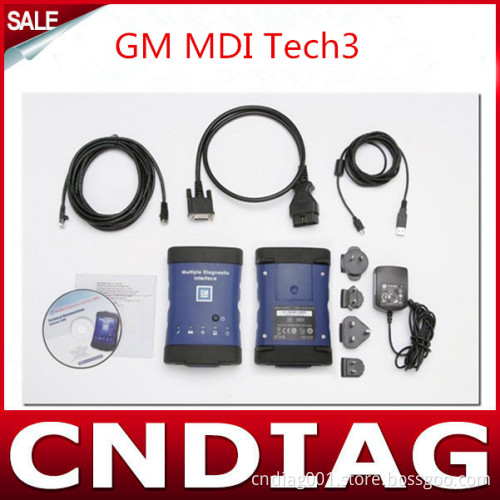

The kit only includes below items:
1 X MDI main unit
1 X Main cble
1 X Network cable
1 X USB cable
1 X power supply
1 X CD
1 X carry Box

GM MDI Description:
Vehicle Coverage: GM
General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
Global Diagnostic System DGS& Mutiple diagnostic Interface MDI


MDI and GDS Background
MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
Can be Used for SPS programming on existing and future SGM vehicles
Required for diagnostics on new SGM Global A Electrical Architecture Vehicles
Used with TIS2Web, GM Global Diagnostics System (GDS), SPS and MDI Manager Software
Allows for GDS diagnostic


GM Multiple Diagnostic Interface (MDI)
All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.
Needed for Global A architechture vehicles
Supports Service Programming System (SPS)
Passthrough progrmming on past model and Global A vehicles
Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application
Includes Flight Recorder Mode
New Diagnostic Application Software required for Global A Vehicles
Global Diagnostic System (GDS)
PC-based software diagnsotics
DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.
GDS is software which runs on a specific PC. Updates received via TIS2Web.
Multiple display options. More space for diagnsotics. Session management for multiple us.
