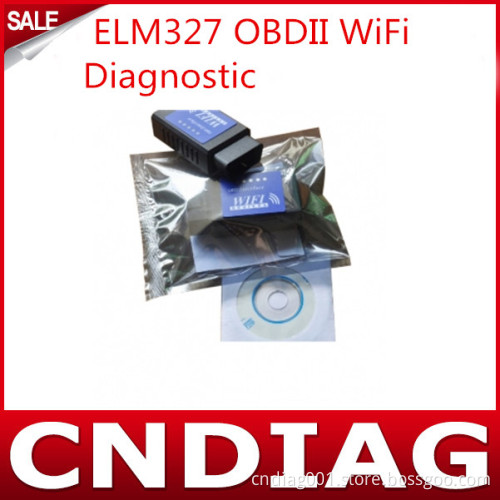

2012 Elm327 Obdii WiFi Diagnostic Wireless Scanner with Apple iPhone Touch

WiFi ELM327 interface is able to detect and interpret OBD2 / eobd protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on).


2012 ELM327 OBDII WiFi Diagnostic Wireless Scanner Apple iPhone Touch

Item Description

WiFi ELM327 interface is able to detect and interpret OBD2 / eobd protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with this tool. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. This tool is only 2.7 X 1.25X 0.9 inches, and it comes with a 6 ft OBDII cable for easy installation. It also includes a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles which are OBD2 or eobd compliant. Connecting to your iPhone / iPod touch is made by WiFi connection in adHoc mode.
With proper software installed in the host device, you may have following parameters read out from your vehicle:
Vehicle Speed
RPM
Fuel Consumption*
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
Note:
Your vehicle may not support all above parameters. How many parameters you can get is depended on the vehicle manufacturer's implementation.

Multi-Protocol Support:
