88890020 Volvo Vcads PRO 2.4 in Development Model, Volvo Vcads 88890180 Interface with Ptt 1.12

Product Description:

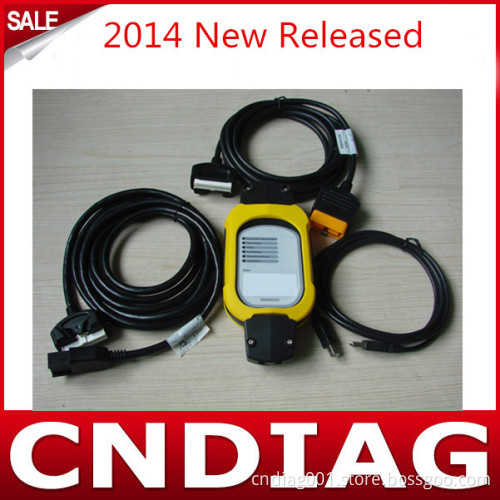

Volvo Interface 88890180 which is a communication unit developed for Volvo/Mack Vehicles and Engines enables PC to communicate with vehicles. The device connects to the PC via a USB cable or by wireless LAN using the 802.11 b/g standard. Communication unit 88890180 has a number of different colored LEDs. These LEDs show the status of the communication unit and indicate warnings, etc.

Operating temperature range: -40 to +85° C (-40 to +185° F).
Storage temperature range: -40 to +125° C (-40 to 257° F).

Before the 88890180 communication unit can be used, a driver must be installed on the PC. In addition, a utility application (Admin0020) can be used to check the status of the device and update the firmware if and when needed.
There are three different ways, described below, of connecting communication unit 88890180.

Via USB-cable
Connect the communication unit to the vehicle.
Connect the USB-cable between the communication unit and the PC.
Select communication unit 88890180 and USB-cable setting in window Alternative.

Directly to the communication unit
Note: Your PC must have Wireless LAN 802.11b/g and support for 128 bit WEP (encryption), if it is to be used for direct communication with the communication unit. The Panasonic CF29 has this built into the motherboard. Additional Wireless LAN cards will be recommended in the future.
Connect the communication unit to the vehicle.
Select communication unit 88890180 and Direct to communication unit in window Alternative.

Security level directly to the communication unit
Communication is performed using 128 bit WEP, Wired Equivalent Privacy. The WEP-key is generated automatically and is not seen during the configuration.

Via an access point
Note: Contact the local IT-support or network technician before installation.
Connect the communication unit to the vehicle.
Select communication unit 88890180 and Via an access point in window Alternative.

Security level via an access point
There are three alternatives for this:
WEP and MAC-address. Communication is performed using 128 bit WEP, Wired Equivalent Privacy. The WEP-key is written in during configuration. The MAC-address is to be written into the access point for additional security.
WPA and PSK. Communication is performed via WPA, Wi-Fi Protected Access.
802.1X. Communication is performed using standard EAP_MSCHAP V2. The communication unit is then treated as a PC and will be logged on to the network using a username and password.

Software Supported Languages:
English, Cesky, Dansk, Deutch, Espalol, Francis, Italian, Magyar, Netherlands, Polski, Portuges, Romana, Srpski, Svenska, Turkce, Russian.

Supported Equipment:
Volvo TRUCKS: AC, FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6, FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12, F16, NL10, NL12
Volvo BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY
Renault TRUCKS (with DXi engines): CESAR, KERAX, KERAXMIL, MAGNUM, MIDLUM, PREMIUM, SH 23, SH 510
MACK TRUCKS
Volvo CONSTRUCTION EQUIPMENT (CE):
Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D
Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B, EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960, G970, G976, G990
Compact Excavator: ECR88
