OBD2 Auto for Renault Pin Code Reader Key Programmming Obdii Key Code Reader Programmer

Renault Megane & Scenic (1999-2003) 8 digits PIN code reading via OBDII Renault Megane - 1999 to 2003 Renault Megane Scenic - 1999 to 2003 Notes: Renault Explorer for the car after 2003 with canbus. So this cable is not same as Renault Explorer.

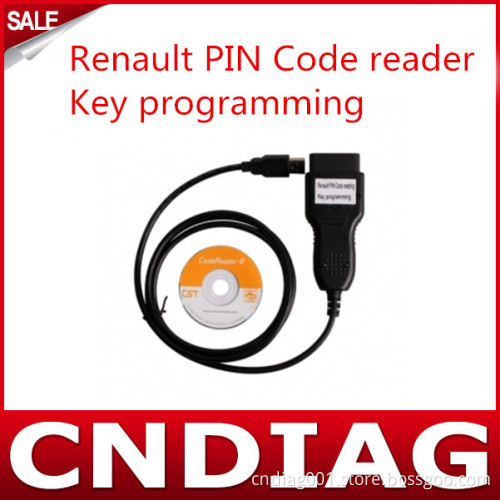

Renault PIN Code reader Key programming

Renault pin code reading video download link:
https://www.mediafire.com/?vvosy83cdf2goyl

Renault PIN Code reader Key programming is not the same as Renault Explorer.

What is difference between Renault PIN Code reader Key programming and Renault Explorer?
Renault PIN Code reader Key programmer works for Renault cars from 1999-2003 which is K Line. Renault Explorer works for Renault car after 2003 which is CAN line.
What Renault PIN Code reader programmer can do?
It can reading immobilizer PIN code and Key programming on Renault Megane and Megane Scenic modules with UCBIC (BSI) module from 1999 to 2003 year via OBD II.
UCBIC (BSI) module like this:

PIN Code reader and Key programming procedure:
Start PIN Reader. Exe VER 3.12 Select from Model Selector "Renault UCBIC" -> "Megane I (8 digit PIN)" or "Scenic (8 digit PIN)". Click
"Program Key's" for PIN reading and Key programming...

After Read PIN code started "Renault Megane/Scenic Key programming procedure".
After this message insert first Key to program.
Switch On Ignition

After "Switch OFF Ignition" first Key is programmed.

Programming procedure for the next key is analogous...

Manual entering PIN code

Read Live Data from UCBIC module


Read and change Setup IMMO parameters

Pin code reader Package list:

1PC X Renault Pin Code Reader Cable
1PC X CD Driver
