Lastest Multi Tool OBD2 CAS1-3+ Key Programmer for BMW Multitool

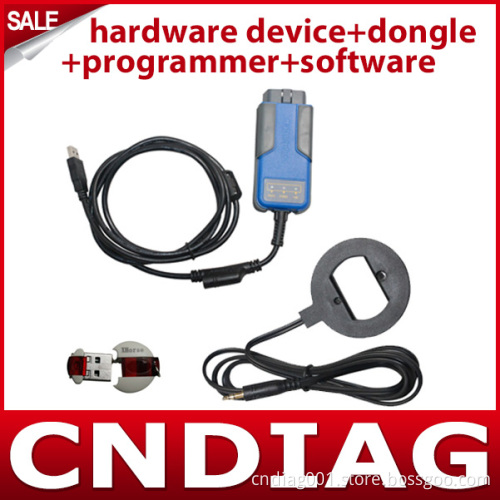

BMW Multi Tool includes forth parts, hardware device, dongle, programmer, software. Before running software you must connect dongle and hardware device to computer.
BMW Multi Tool latest software V4.1
Powerful than AK300! ! !

BMW Multi Tool includes forth parts, hardware device, dongle, programmer, software. Before running software you must connect dongle and hardware device to computer.
V4.1 update instructions:
1. Using the vehicle ignition switch is directly generated dealers key
2. Support the latest version of the the ISTA P45/ISTA P46 downgrade access to anti-theft data area, when lost them all to generate the distributor key.
3. Bug repair
4. Only in 4.0 on the basis of some bug fixes, not to add new features
New software update: V3.0, here is update tips:
1. The software V3.0 must be run above firmware V1.0.4.
2. You can go to Help->Device Update->Device Update to update your device to the newest version.
3. Once you update your firmware when use V2.5 software. It does not need update the firmware again.
4. Add Italian and Spanish language.
5. Normal bug fix.

Description:
1. OBD II CONNECTOR: Connects the tool to the vehicle's Data Link connector (DLC).
2. Dongle: USB dongle.
3. USB CONNECTOR: Connects the tool to the PC/Laptop through USB Cable.
4. Programmer: Program keys.
5. Programmer Female Pin: Connects programmer to device.
6. Programmer Male Pin: Connects programmer to device.

Specifications:
1. Operating Temperature: -20 to 70 ° C ( -4 to 158 ° F )
2. Storage Temperature: -40 to 85 ° C ( -40 to 185 ° F )
3. Diagnostic Interface: 16 PIN
4. USB Interface: USB 2.0
5. Power: DC 5 V - 12 V
6. Consumption: 1 W
7. Dimensions: Length 95 mm, Width 49 mm, Height 28 mm

Function:

BMW MULTI TOOL supported function including:
1. Car access sytem dentification
2. Read/Write CAS EEPROM(OBDII)
3. Read/Write KM stored in CAS system(OBDII)
4. Read/Write synchronization codes stored in CAS system(OBDII)
5. Synchronize DME and CAS(OBDII)
6. Synchronize CAS and ELV(OBDII)
7. Prepare dealer key for CAS1/CAS2/CAS3/CAS+(support latest CAS3 verison)(OBDII)
8. Read/Restore CAS KEY information(OBDII)
9. Disable/Enable key with working key(OBDII)
10. Clear DTC and Shadow (OBDII)
11. Prepare dealer key with CAS eeprom dump
12. Unlock dealer key prepared with our software with CAS eeprom dump or KEY information
13. Change KM in CAS and instrument dashboard with file dump
14. Have key programmer, you can programm dealer key directly.

Pay attention to the function: Help->Device update. You can get the latest software version and firmware verion when you can access to internet.
1. Menu:
- Tool: You can choose language here, support "English" and "Chinese Simplified" Restart software to apply your settings.
- File Make Key: You can prepare dealer key with EWS and CAS EEPROM dump.
- Help: Device update. You can get your device and dongle ID version and update it.

2. Protocal type:
Now BMT support there type of protocol: KWP-CAN BUS 100Kbps, KWP-CAN BUS 500Kbps, KWP-2000. "Auto Detect " function can help you to choose the right protocol. After choose protocol okay, then press "Connect". If connected success. All CAS info will display in CAS Identification. Include CAS number, VIN, production date, etc.
Warning: Make sure connect dongle to compute before run the software.
