Vehicle-Mounted Digital Rcied Jammer, Convoy Jammer, Bomb Jammer

Full Band 20-3000MHz Vehicle-Mounted Digital Rcied Jammer, Convoy Jammer, Bomb Jammer with Built-in Battery VBE-700B

The Jammer is a vehicle mounted very high power jammer designed for blocking remote controlled improvised explosive devices(RCIED) Used by terrorist
The Jammer is using state-of-art technology for maximum performance and jamming the signals transmits to activate bombs
Jamming radius of the Jammer depends on several conditions such as transmitter frequency and output power, distance to receiver, and obstacles between, etc

Features:
Using DDS Jamming technology to make the Frequency setting more precise
High efficient output power, long jamming radius
Slow start up design of circuit to make the device work stably.
Perfect Self Protection: Over Heat protection, Over current protection, High input Voltage and low Voltage protection, VSWR protection
Easy operation, using Wire Control Panel to monitor the system
Integrated backup battery can support the Jammer to work one hour

Applications:
Military Convoy
VIP Protection
RIOT Control
S.W.A.T Team
EOD Operations
Electronic countermeasure, etc

Technical Specifications:
Working frequency: 20MHz to 3000MHz, full band jamming, no gap.
Output Power: Up to 700 Watts
Range jamming: 30m to 200m ( depending on the environment signal strength)
Internal Modulation: Direct Digital Synthesis
Power Supply: 110/220V AC& 28V DC
Power Consumption: 2000W
Sweep rate: Fixed
Antenna: External Omni-Directional Antenna, 360 degree protection
Battery: Integrated Lithium iron battery
Battery capacity: 28V-70A
Battery working time: one hour
Power Amplifier Protection:
A. Over Heat protection Thermal protector
B. Over current protection
C. High input Voltage and low Voltage protection
D. VSWR protection: against antenna miss-match including open and short circuit
Remote Control:  Wire Control Panel available
A. Output power LCD Indication
B. Output power adjusting by LCD
C. Output power on/off per band
D. Jamming frequency setting by LCD Panel
Dimensions: 625 x 510 x700mm
Net Weight: Approx. 120kg
Operating Temp: -10ºC - +55ºC
Humidity: 5% - 90%

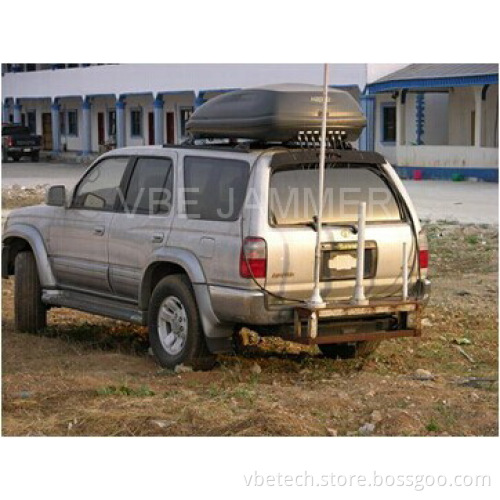

                                                                                  Vehicle View

                                                                                 Device View


                                                                          Wire Control Panel
