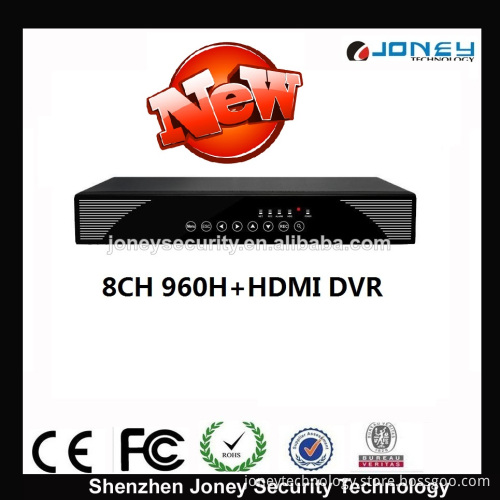

8channel HDMI 1080P 960h H. 264 DVR

8CH H. 264 CCTV Standalone DVR

Specifications
Video input 8 CH < BNC input >
Performance 960H realtime
Video output 1CH BNC Output, 1CH VGA Output, 1CH HDMI 1080P
Resolution960H
System ResourceSixfold operation: Live recording, Playback, Backup, Remote access, PTZ control, Mobile monitoring
Control ModeFront panel, USB mouse, IR remote control, Network
Audio8CH RCA Input, 1CH RCA Output
Alarm 8CH Input, 1CH Output
Play back8CH at the same time
PTZ1*RS485, RS-232 Support PELCO-D, PELCO-P Procotol
USB2 * USB2.0
Mobile phoneSupport Window Mobile, Symbian, Android, iPhone and Blackberry etc
HDD CapacityHDD Max 3TB, SATA Interface HDD*2, Up to 6TB
Network Interface1 RJ-45 10/100Mbps Ethernet connector, 3G, WiFi, P2P
BackupUSB DISK, Network, USB DVD-RW
LanguagesMultilingual support
User ExtendDesign boot screen LOGO by youself
Power supplyDC12V, 4A (Adapter Included)
Package 5PCS/CARTON, 58X42X34CM 12.6KG (Standard 1U)

High definition display, recording/playback quality
Image Display resolution: 960H(960*576), Encoding Speed
Main Stream: 960H(1~25/30F/S), playback960H(1~25/30FPS/CH)
Remote Surveillance with Browsers and CMS
For web browsers, compatible with Internet Explorer, Mozilla Firefox, Google Chrome,

Safari & Opera.
For CMS software, available with our self-developed and free software.

Cloud Service (Have a Serial Number for Plug and Play Technology)
Specialized website: Www. Dvrskype. COM, remote control easily & conveniently without any complicated setting. P2P function, No setting for DDNS and port forwarding when IE browser remote view

Network Service, Dual-stream Design
Support DHCP, DNS, DDNS, EMAIL, NTP, PPPoE, ARSP, UPNP, FTP, RTSP, IP FILTER and Alarm Server etc.
Main stream for local recording effects, extra stream for network remote view effects. Dual-
Stream parameters can be set separately, independently of each other.

3G and WiFi, Mobile Surveillance
Support 3G & WiFi extension.
Support iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android.

High Performance Design
Definable "Resolution" / "Quality" / "IPS" by channels at your preferences to increase the recording efficiency, and avoid any important scenes to be missed.

Intelligent Motion Recording
Only the channel with an event will be recorded to effectively save a significant amount of hard disk space and have the maximized recording time.
Supports pre-alarm recording(before 10 sec).

PTZ Protocol
Support more than 20 kinds protocol of the PTZ control
Remote Independent Operation
Channel switching is independent from the local site, allowing users to have private image monitoring remotely.

Multiplex Operation
Allows live display, record, playback, backup, network and mobile surveillance operation at the same time.

Multilingual Language
Support 28 kinds language.

Backup Function
USB 2.0 flash drive, USB mobile HDD, Network and USB DVD-RW.

Video Output
Supports video output for composite BNC, VGA, HDMI simultaneously.
Support VGA resolution output up to 1920 X 1080.
Support HDMI resolution output up to 1920 X 1080.

Audio / Alarm Support
8 audio-in, 1 audio-out to record sounds, 3 video output
