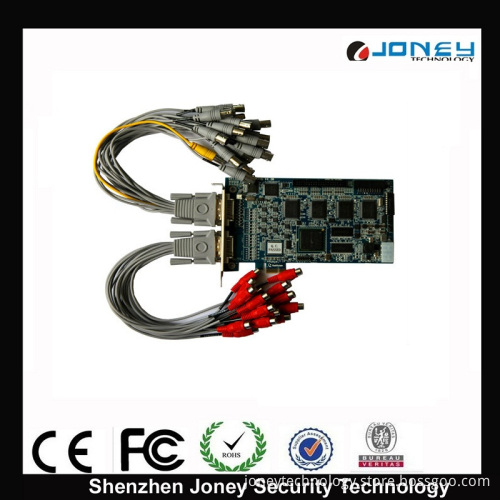

Geovision Software PC Base DVR Card

Specifications

O. S. Support: 32/64-bit Windows XP / Windows Vista / Windows 7 / Windows 8

GV-1480A / GV-1480A x 2
Interface: PCI-E (x1)PCI-E (x1) x 2
Input Type: DVI
Video Input: 16 Cams /32 Cams
Audio Input: 16 Channels/ 32 Channels
TV Output: BNC Connector
Recording Rate: CIF NTSC 480 fps/ 960 fps; PAL 400 fps/ 800 fps
Turbo VGA: NTSC 416 fps /836 fps PAL 400 fps800 fps
T D1 urbo: NTSC352 fps 704 fps PAL 320 fps 640 fps
Display Rate: CIF NTSC 480 fps /960 fps PAL 400 fps800 fps
D1: NTSC480 fps 960 fps PAL 400 fps800 fps
Video Resolution: NTSC720x480, 720x480 Deinterlace, 640x480, 640x480 Deinterlace, 360x240, 320x240
PAL720x576, 720x576 Deinterlace, 640x480, 640x480 Deinterlace, 360x288, 320x240
Video Compression Format: Geo MPEG4, Geo H264
Audio Compression Format: AAC (16 kHz / 16 bit)
GV-Multi Quad Card Support: YES
GV-Loop Through Card Support: YES
GV-NET/IO Card Support: Yes
Dimensions: (W x H)179 x 112 mm / 7.04 x 4.41 in

Installation Guide GV-1480A
Note:
1. GV-1480A is currently not compatible with VIA series and ATI series chipset motherboards
2. Turbo mode is only applied in VGA and D1 resolutions
3. Specifications are subject to change without notice.

Minimum System Requirements For One Card
OS Supported32-bitWindows XP / Windows Vista / Windows 7 / Windows Server 2008
64-bitWindows 7 / Windows Server 2008 R2
CPU Core 2 Duo, 3.0 GHz
RAM 2 x 1 GB Dual Channels
HDD 250G
Graphic Card AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended), 32-bit color
DirectXDirectX

Minimum System Requirements For Two Card
OS Supported: 32/64-bitWindows XP / Windows Vista / Windows 7 / Windows Server 2008
64-bitWindows 7 / Windows Server 2008 R2
CPU Core 2 Quad, 2.4 GHz
RAM 2 x 1 GB Dual Channels
HDD 500 GB
Graphic CardAGP or PCI-Express, 800 x 600 (1280 x 1024 recommended), 32-bit color
DirectX9.0c



Minimum System Requirements For Turbo Mode


Model: GV-1480A x 1/ GV-1480AX2
CPUCore 2 Quad, 2.4 GHzCore i7-920, 2.66 GHz
RAM2 x 512 MB Dual Channels (Windows XP)2 x 1 GB Dual Channels (Windows Server 2008 / Vista / 7)2 x 1 GB Dual Channels


Graphic CardAGP or PCI-Express, 800 x 600 (1280 x 1024 recommended),
32-bit colorAGP or PCI-Express, 800 x 600 (1280 x 1024 recommended),
32-bit color

HDD320G / 750G
