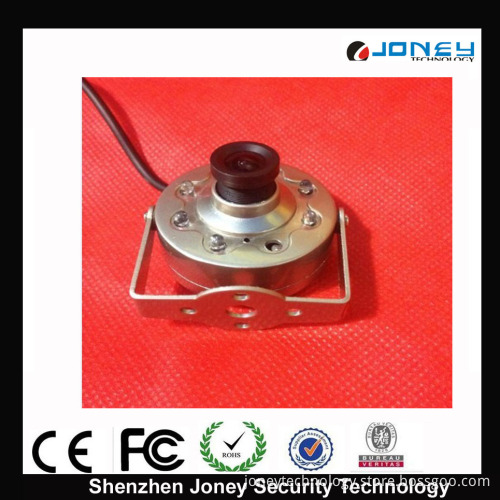

CCTV Micro Mini Camera with Audio Input for Day Night Vision

The smallest IR camera with audio in the world


Suitable for birdcase, small space or mini camera

Model Number: JYM-CMOS001R
Image Sensor: 1030N, CMOS 1/3 Sony
Resolution: 420tvl
Minimum Illumination: 0 Lux /IR on, 0.001 lux/IR off
Lens: 3.6mm or 6mm fixed lens
IR LEDs: 8PCS LED
IR distance: 8-10 Meter
S/N ratio: More than 52dB
Electronic Shutter: NTSC: 1/60-1/100, 000, PAL: 1/50-1/110, 000
Gamma: 0.45
White Balance: ATW/PUSH/USER1/USER2/ANTICR/MANUAL /PUSH LOCK
Back light compensation: Off/BLC/HLC
Gain control: Auto/Manual
Motion detection: 8 Area setting
Privacy: 8 Area setting
Sync. System: Internal
Video outpout: 1Vp-p/75 Ohms
Power supply: DC12V +/-10%
Operation temperature: V- 30 ~ + 50 cesar degrees
Waterproof Stard.: For indoor use
External case: Aluminum housing(waterproof IP66)
Audio: Yes, with RCA port for audio
Weight: 100g
