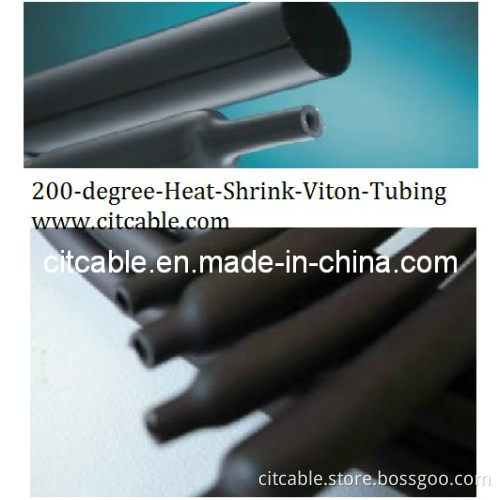

Heat Shrink Viton Fluoroelastomer Tubing

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T

Product Description

Viton/Fluoroelastomer Heat Shrink Tubing is made from modified fluoroelastomer (Viton), with superior impact, abrasion and cut through resistant, it is suitable to many applications requiring high resistance to corrosive fluids, fuels, lubricants, acids and solvents at elevated temperature

Technical Data

Tensile strength ASTM D 2671 8.5MPa

Elongation at break ASTM D 2671 250%

Elongation at break after aging 250 degree /168hrs. 200%

Heat shock 300 degree /4hrs. No cracking or dropping

Flexibility ASTM D 412 13.8MPa

Flammability ASTM D 2671 Self-extinguish in 15sec.

Volume resistance ASTM D 876 109Ω.cm

Dielectric strength ASTM D 2671 7.9kV/mm

Copper corrosion SAE-AMS-DTL-23053/13 (175 degree /16hrs.) No corrosion

Advantage

1.Approval: VW-1,

2.Meet: SAE-AMS-DTL-23053/13

3.Very flexible

4.Excellent resistance of chemicals

5.Operating temperature -55 degree to +200degree

6.Minimum fully recovery temperature: 175 degree

7.Standard color: Black

Usage: widely used for all kinds of strong acid and alkali, steam, hot air, hot oil and other liquid transportation and packing, also used in work environment harsh coat of wire.

SPECIFICATION (ID )

From 3.2 to 50.8MM

Customer sizes avaliable upon request
