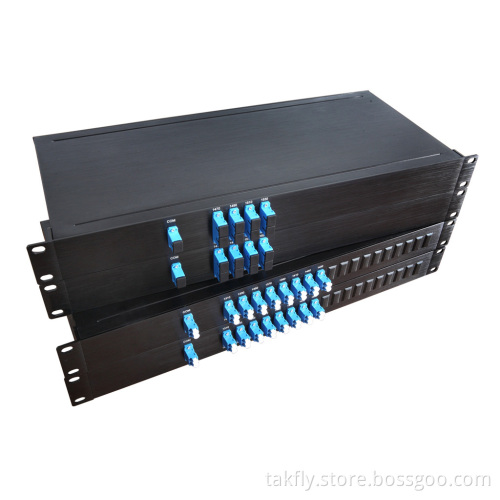

Hot-Selling Rack Mount Type CWDM

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, D/P, Paypal, Western Union

Product Description

1. Mux/Demux
2. Wavelength: 1270 nm-1610nm
3. Single mode/multimode for option
4. FC/LC/SC/ST connector
CWDM can save fiber resources and networking cost effectively. It can solve optical fiber shortages and many transparent business transmission. It is used in intracity networks converge and access layer, in addition, it can build network and develop business in a short time. It is a low cost and high-performance transmission solutions with the advantages of low power consumption and mini size.

Features

Low Insertion Loss
Low PDL
High Isolation
Excellent Environment Reliability

Applications
WDM System
MAN
CATV System

Parameters		1x2	1x4	1x8
Center Wavelength (nm)		ITU, ITU+1
Operating Wavelength (nm)		1260 ~ 1620
Channel Space (nm)		20
Fiber Type		SMF-28e or customer specified
IL (dB) ( P/A Grade )		0.7/1.0	1.4/1.7	2.0/2.5
Isolation (dB)	Adjacent Channel	30
	Non-Adjacent Channel	50
Ripple (dB)		0.3	0.4	0.5
PDL (dB)		0.1
PMD (ps)		0.1
RL (dB)		45
Directivity (dB)		50
Maximum Optical Power (mw)		500
Operating Temperature (		0 ~ 70
Storage Temperature		-40 ~ 85
19'' Rack mount Package		1U
