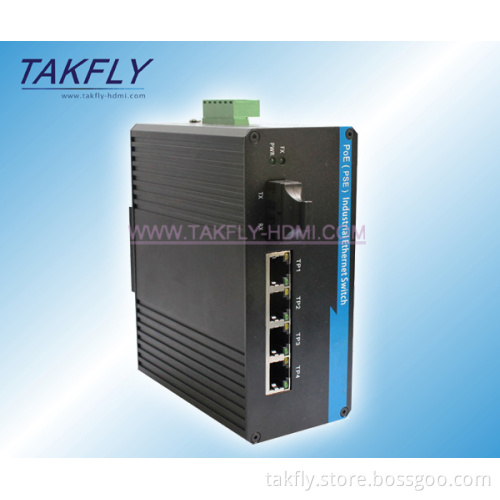

4-Port 10/100m Industrial Grade Poe Unmanaged Ethernet Switch

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, Guangdong China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

Features and Benefits

1. Comply to IEE 802.3 10Base-T, IEEE802.3u, 100Base-TX/FX
2. Provide a SC single-mode /multimode optical port and 10/100M RJ45 port, support for Full/half duplex mode and auto MDI/MDI-X connection
3. Comply to IEEE 802.3af, provide power for the IP cameras over Ethernet
4. Dynamic LED indicator, display the current operating status, providing a simple working condition and troubleshooting tips
5. Adopt IEEE 802.3X Standard full-duplex flow control, with standard duplex Backpressure flow control
6. Port Configuration
RJ45 Port: Auto-negotiation, 10/100Base-T, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5# with operation distance of less than 100 meters.

Parameters
Single-mode	20, 40, 60, 80, 100, 120Km, optional
Multi-mode	2, 5Km, optional
Wavelength	850nm, 1310 nm, 1550nm
Input Voltage	48V DC (46~50VDC), Redundant power input
Environmental Temperature	-40 degrees ~+ 80 degrees( Wide Temperature)
Storage Temperature	-40 degrees ~+ 85 degrees
Humidity	5%~95%
Dimensions	61 X 120 X 140 mm
House Protection	IP40 protection, Aluminium Alloy
Installation	DIN-Rail or wall mounting
Weight	730g
Approvals	FCC/CE/LVD/EMC
EMS:	EN61000-4-2 (ESD), Level 3 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 3 EN61000-4-5 (Surge), Level 3 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 3
Shock	IEC 60068-2-27
Free Fall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Warranty	5 years
