Sc PC Fiber Optic Connector

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, D/P, Paypal, Money Gram, Western Union

Product Description

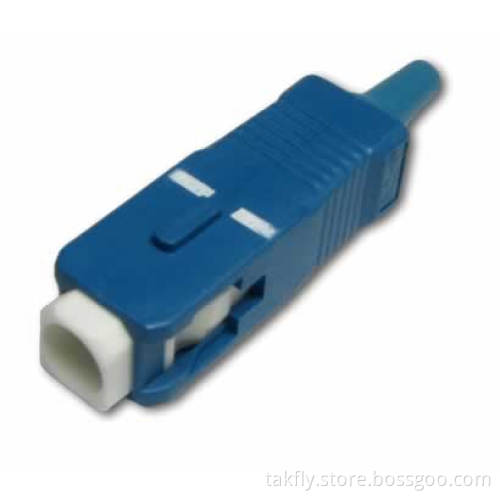

SC/PC fiber optic connector-SM 2.0&3.0mm

Features:
Zirconia ferrule
Precise dimension
Low insertion loss
High return loss
Convenience and ease of handling
Environmentally stable

Application:
Telecommunications
LAN
CATV Networks
Active Device Termination
Industrial and Military
Instrumentation
FTTX

Specifications:
Insertion Loss: Single mode l≤ 0.20dB & Multimode ≤ 0.25dB
Return Loss: UPC ≥ 50 dB, SPC ≥ 55 dB & APC ≥ 65 dB
Durability <0.20 dB typical change, 1000 mating
Operating Temperature: -40 to 80 C
Ceramic Ferrule Hole Sizes:
Single mode: 125.0 1/-0μ m, Concentricity: ≤ 1.0μ m, 125.5 1/-0μ m, Concentricity: ≤ 1.0μ m, 126.0 1/-0μ m, Concentricity: ≤ 1.0μ m
Multi mode: 125μ m, Concentricity: 1≤ 3μ m or 127μ m, Concentricity: 1≤ 3μ m or 128μ m, Concentricity: 1≤ 3μ m
Sc PC Fiber Optic Connector
