Hot-Selling Outdoor Fiber Cable

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

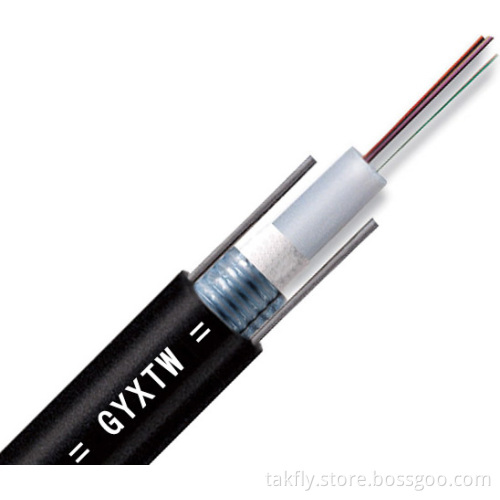

outdoor fiber cable
Application:
.Adopted to Outdoor distribution.
.Suitable for aerial .pipeline laying method.
.Long distance and local area network communication.
Characteristics:
.Steel-wire parallel member.filler protect tube fiber steel tape amored.
.Excellent mechanical and environmental performance.
.compact structure.light weight.
.can be installed conveniently and operated simply.

GYXTW

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	()
2	8.3	78.00	1500	600	1000	300	20D	10D	-40+60
4	8.3	78.00	1500	600	1000	300	20D	10D	-40+60
6	8.3	78.00	1500	600	1000	300	20D	10D	-40+60
8	8.3	78.00	1500	600	1000	300	20D	10D	-40+60
10	8.3	78.00	1500	600	1000	300	20D	10D	-40+60
12	8.3	78.00	1500	600	1000	300	20D	10D	-40+60

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A\B\C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1\A2 \B3)		B4: Main technical data for positive dispersion shifted single-mode fiber
