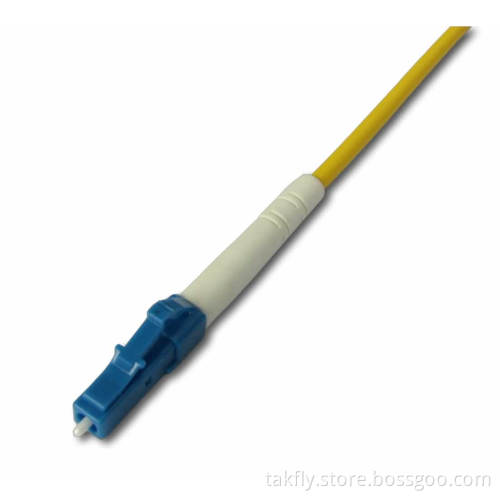

LC/APC Simplex Sm Fiber Patch Cord

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, Paypal, Western Union

Product Description

SC FC ST LC MTRJ MPO Connection

Applications:
- Local area networks, including FTTH and FTTD
- CATV system
- Telecommunication system
- Data processing networks
- Testing equipment
- Long-haul telecommunication
Features:
- Low insertion loss(IL) and high return loss(RL)
- Good compatibility
- Good durability
- High temperature stability
- High precision of mechanical dimensions
- Available for single mode/multi-mode and simplex/duplex
- 0.9/2.0/3.0mm diameter cable available
Specifications:
- Insert loss:
  - Typical: ≤0.2dB
  - Maximum: ≤0.3dB
- Return loss: ≥50dB (PC), ≥60dB (APC)
- Repeatability: ≤0.1
- Durability: ≤0.2dB
- Interchangeability: ≤0.2dB
- Operating temperatures: -40 to 85°C
- Operating wavelengths: 850, 1,310, 1,550mm
