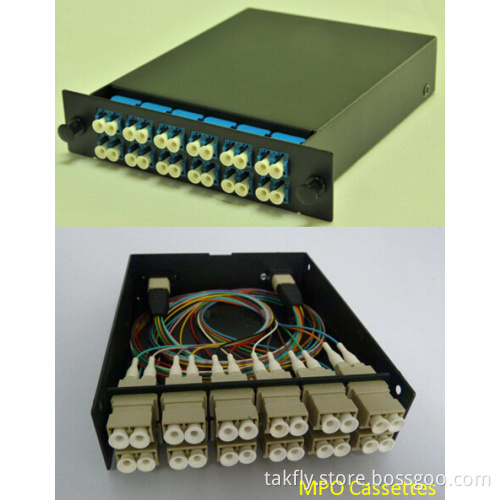

FTTX Fiber Optic MPO Cassette 1u

Takfly MPO Cassette Modules provide secure transition between MPO and LC or SC discrete
Connectors. They are used to interconnect MPO backbones with LC or SC patching.
Modular system allows for rapid deployment of high density data center infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes can be
Mounted in 1U or 4U 19" multislot chassis.
MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical
Performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered
Featuring low insertion loss for demanding power budget high speed networks.
Features:
*Suitable for MPO/MTP application
*High-density and small design; Easy and fast installation
*12 and 24 fiber versions 12 LC (Duplex) / SC (Simplex) optical parts
*Available Multimode (62.5/125, Standard 50/125 and OM3, OM4) and Single mode(OS1/2)
Fiber
*Factory-terminated and -tested cable and apparatus for instant field connections with
Guaranteed quality and performance
*Metallic shell with high strength protect the inner fibers effectively
*Supports easy reconfiguration for moves, adds, and changes
Application:
*Data Centre Infrastructure
*Storage Area Network-Fiber Channel
*Emerging 40 & 100Gps Protocols
