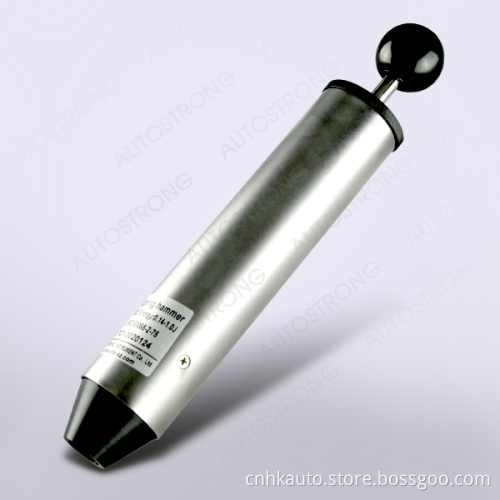

IEC60068-2-75 Ptl Spring Impact Hammer Calibrator

PTL Spring-operated Impact-Test Apparatus F 22.50

For impact tests to demonstrate the level of robustness according to IEC, EN, VDE in accordance With IEC 60068-2-75 / 1997-08, 5 and An. E.

Standard Outfit:
1 body, including release mechanism and striking
Element guide, mass 1250 g, outside diameter 50Mm,
1 striking element, with cocking knob and with hammer
Head, face of polyamide, spherical segment shape
With a radius of 10 mm, mass 250 g, length approx. 315 mm,
1 release cone, mass 60 g,
1 helical compression spring, mass approx. 9 g,
Total length cocked approx. 350 mm, total mass approx. 1570 g,

Supplied ready for operation, including PTL certificate concerning calibration of impact energy by Means of a calibration device according to IEC 60068-2-75 / 1997-08 Annex B and concerning release pressure.

Impact energy Tolerance Article No.:
0, 14 J; 0, 014 J F 22.10
0, 20 J; 0, 02 J F 22.11
0, 35 J; 0, 03 J F 22.15
0, 50 J; 0, 04 J F 22.16
0, 70 J; 0, 05 J F 22.17
1, 00 J 0, 05 J F 22.18

PTL Universal Spring Hammer

As described above, but with the five impact energies 0, 20 J, 0, 35 J, 0, 50 J, 0, 70 J and 1, 00 J, to
Be selected by means of a disk with knurled edge, tolerances as scheduled above, supplied with
PTL calibration certificate concerning the five impact energies and the release pressure,
Article No.: F 22.50

PTL spring-operated impact-test apparatuses with other impact energies, e. G. 2 J (F 22.20), other
Masses of the striking element, e. G. 500 g (F 22.20), other release forces, e. G. 20 N, and other
Hammer heads, e. G. Made of steel with r = 25 mm (F 22.20):
On special request
Preserving Case,
Made of wood, to keep one spring-operated impact-test apparatus, with floccular coated holders,
Article No.: F 22.80;
