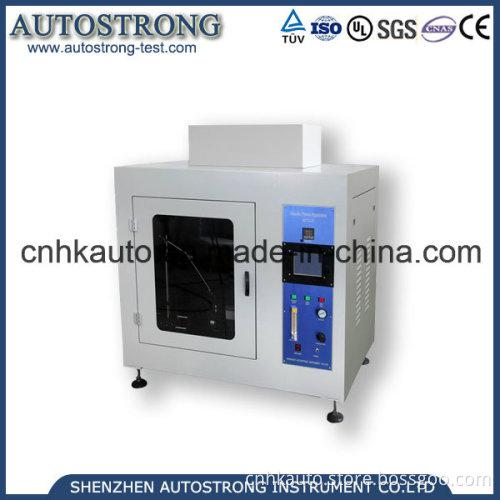

IEC60695 Standard Glow Wire Test Apparatus

1. Application:

Glow Wire Tester is designed to carry out fire hazard testing on electro technical products in accordance with the provisions of International standards.

The control unit is supplied with all the controls and metering necessary to accurately set the temperature of the glow wire. The wire current is continuously variable by means of the panel-mounted controller and is monitored by the built-in ammeter.

A digital temperature indicator is fitted which, in conjunction with the thermocouple supplied, accurately measures the glow wire temperature. The electrical circuit of the control unit is fully protected by fuses and a miniature circuit breaker and incorporates mains on/off switching and push button control of the output current. Self contained cabinet with large viewing window and dark colored interior.

2.Picture of Our Company:
IEC60695 Standard Glow Wire Test Apparatus

Please feel free to contact us if you are interested in our products. We'll be very happy to give your the best quotation on your detail requirements.

Glow Wire	Ø 4mm±0.04mmNi/Cr(80/20), standard
Temperature Range	500 ~ 1000 °C± 2 °C continuous adjustable
Thermocouple	Ø0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature-40°C~ 1100°C
Searing Time	30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, preset table)
Light-off Time	0-999.9 s ± 0.1 s, automatic recording, manual time out
Fire out time	0-999.9 s ± 0.1 s, automatic recording, manual time out
Ironing into depth	7mm ± 0.5 mm
Sample pressure	1N ± 0.2 N
Test speed	18±3mm/s
Test background	black background
Test process	automatic control, independent convulsions
Chamber	≥0.5m
Control	Using single chip microcomputer + touch screen control
Consult standard	GB/T5169.10-2006 , IEC60695-2-10:2000,UL746A
Power Supply	800VA ,220V, 48-60Hz
Display panel language	All English (adjustable)
